Temperature Blend Door Actuator LH
Temperature Blend Door Actuator LH

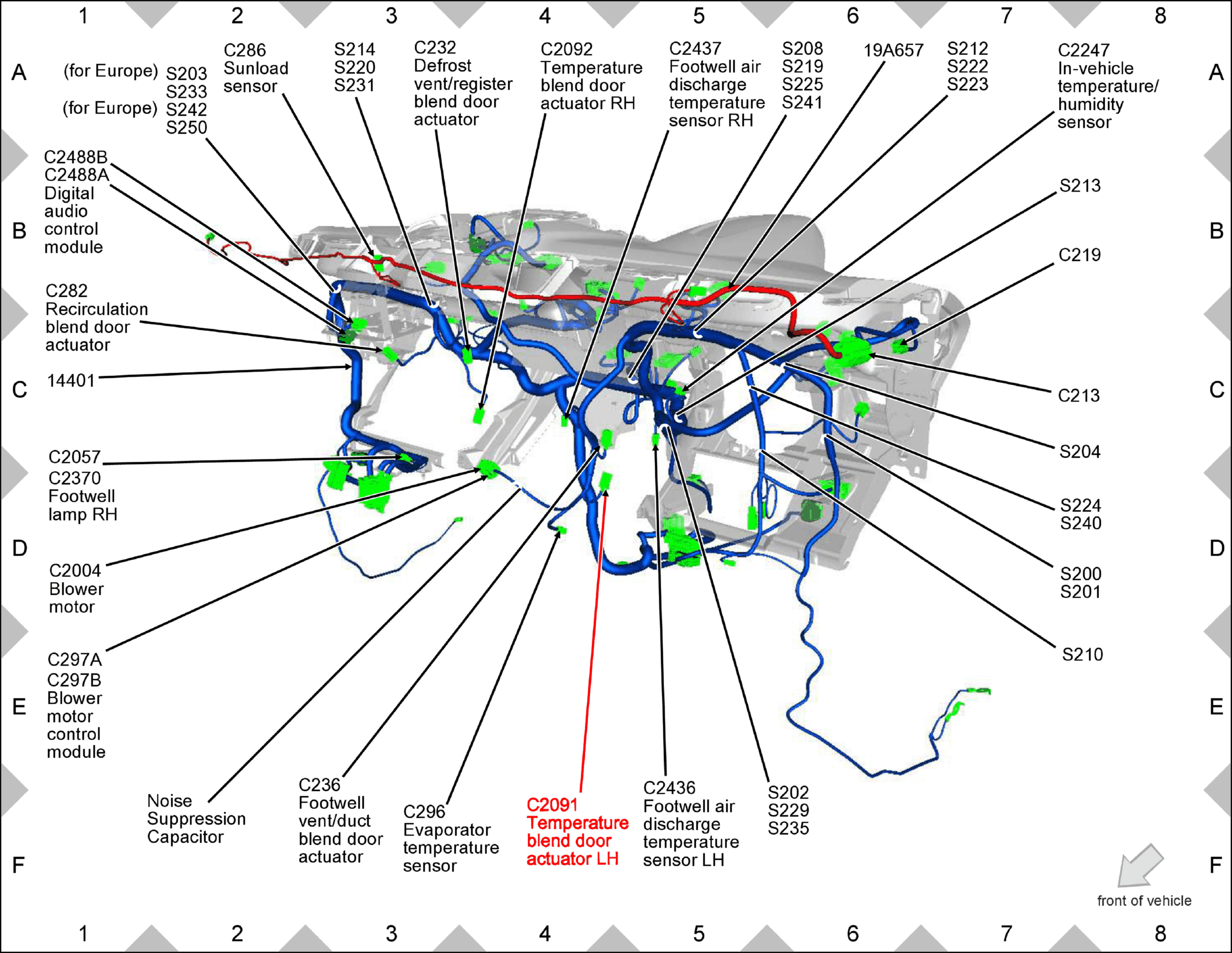

Fig 1: Temperature Blend Door Actuator LH Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
