Seat Back Heater, Right Front
Seat Back Heater, Right Front

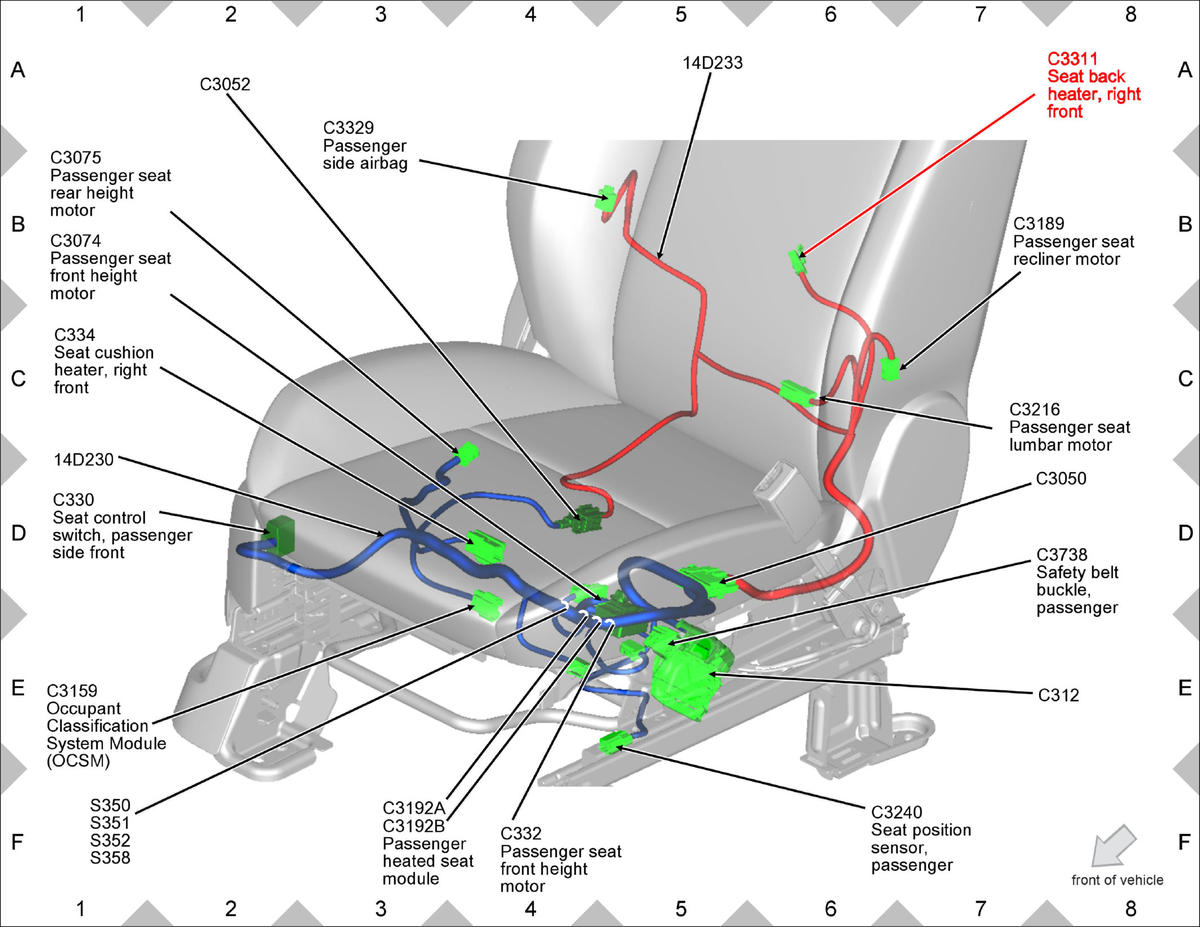

Fig 1: Seat Back Heater, Right Front Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
