Seat Back Heater, Left Front

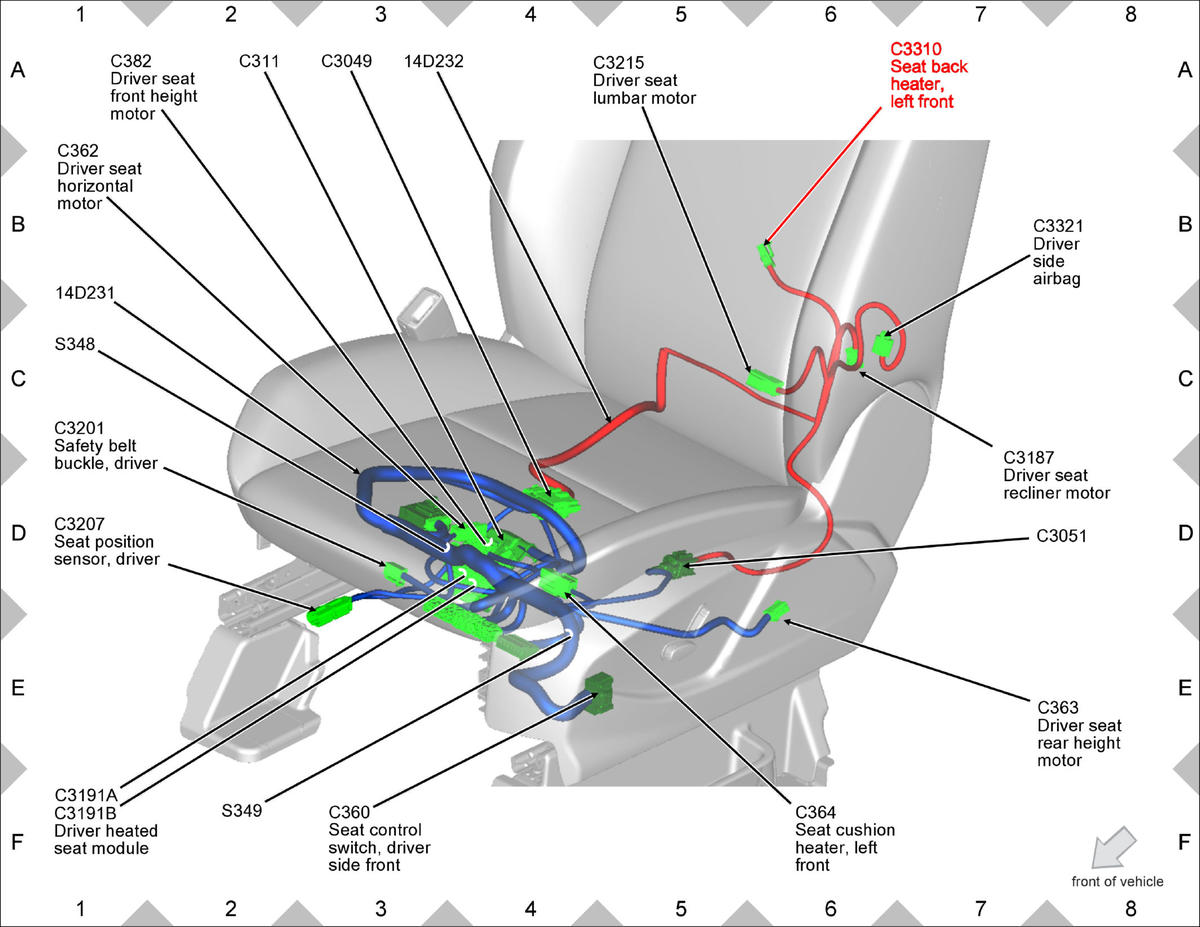

Fig 1: Seat Back Heater, Left Front Components Location

GFDW88337

Courtesy of FORD MOTOR COMPANY
