Rear Fog Lamp LH

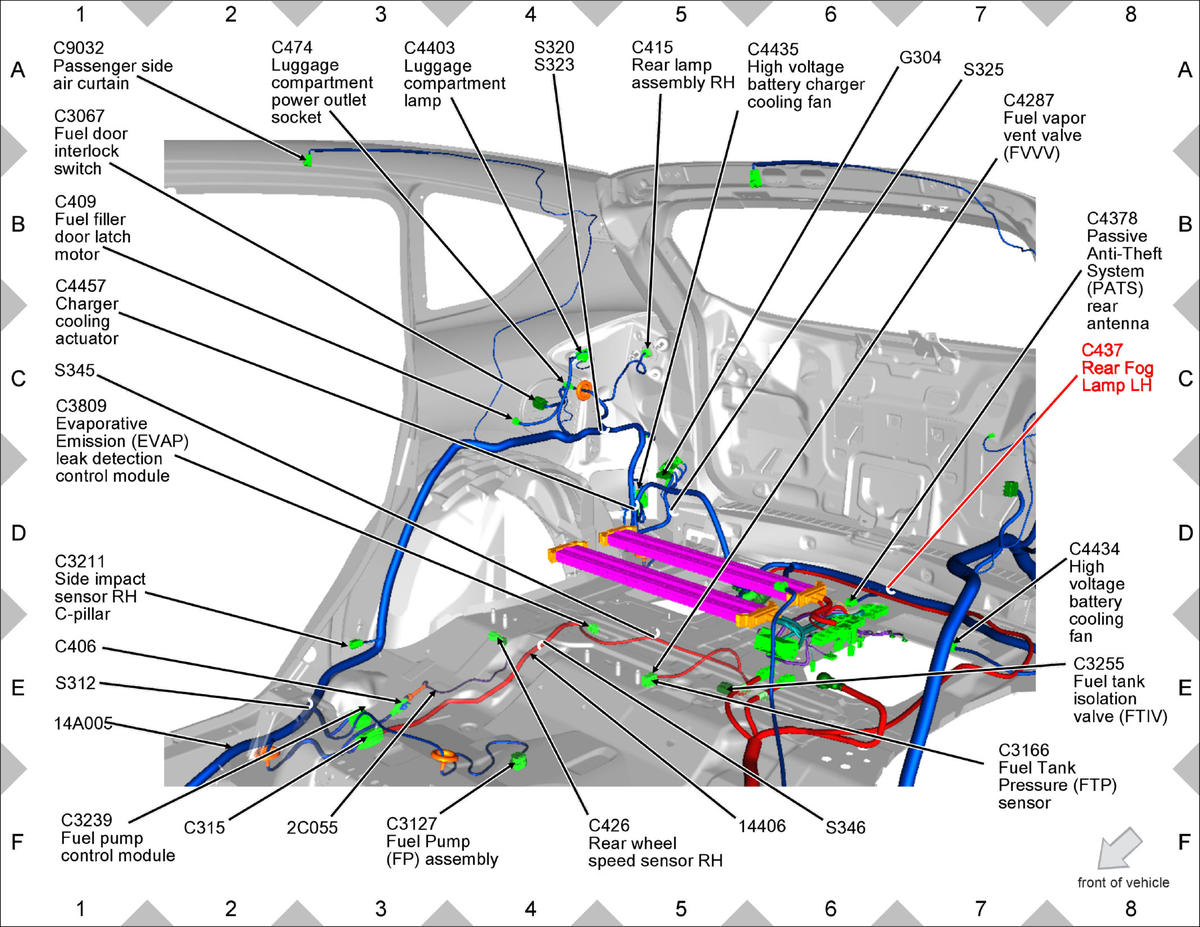

Fig 1: Rear Fog Lamp LH Components Location

GFDW88322

Courtesy of FORD MOTOR COMPANY
