Passive Anti-Theft System (PATS) Rear Antenna

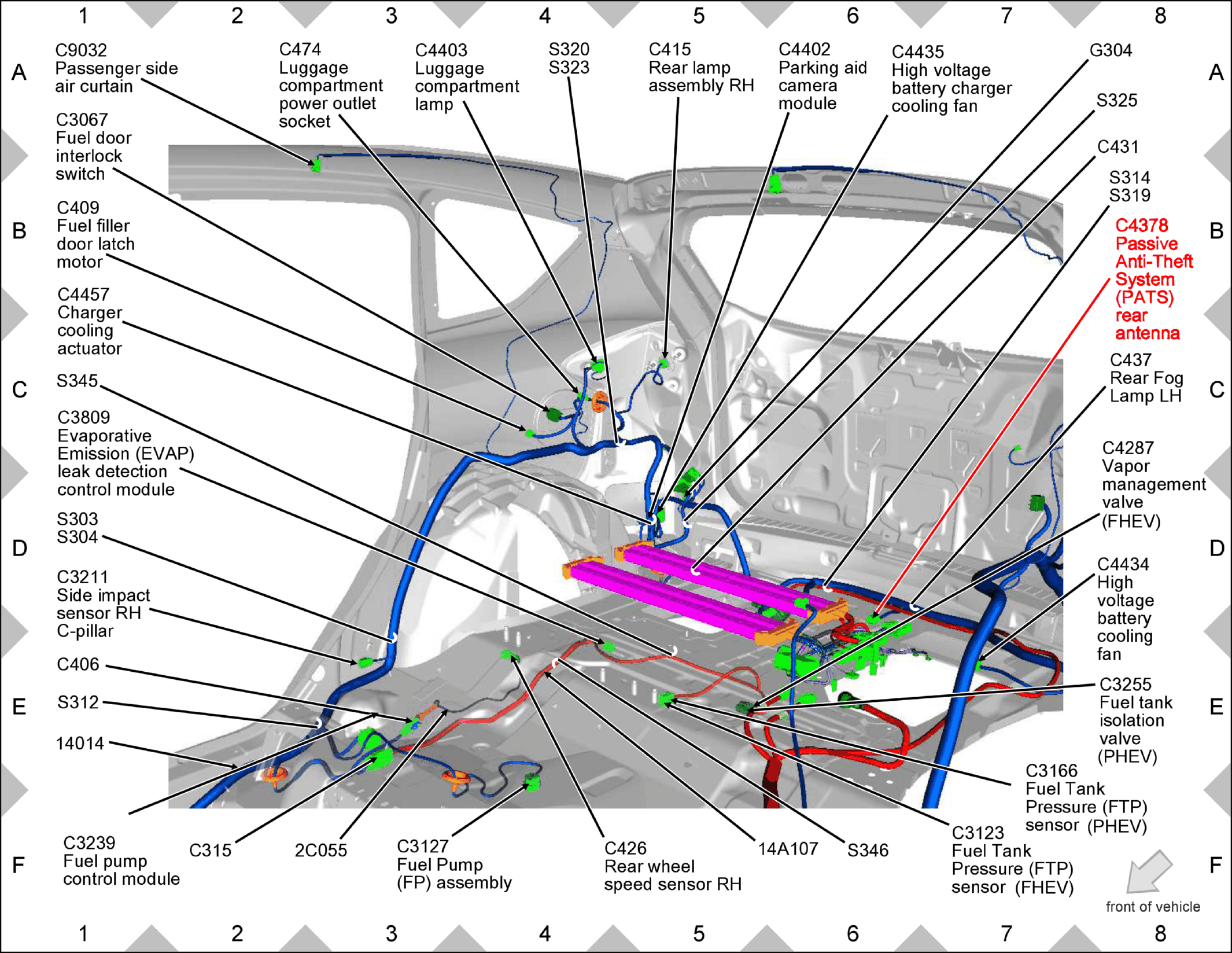

Fig 1: Passive Anti-Theft System (PATS) Rear Antenna Components Location

GFDW66252

Courtesy of FORD MOTOR COMPANY
