Passenger Side Instrument Panel Speaker

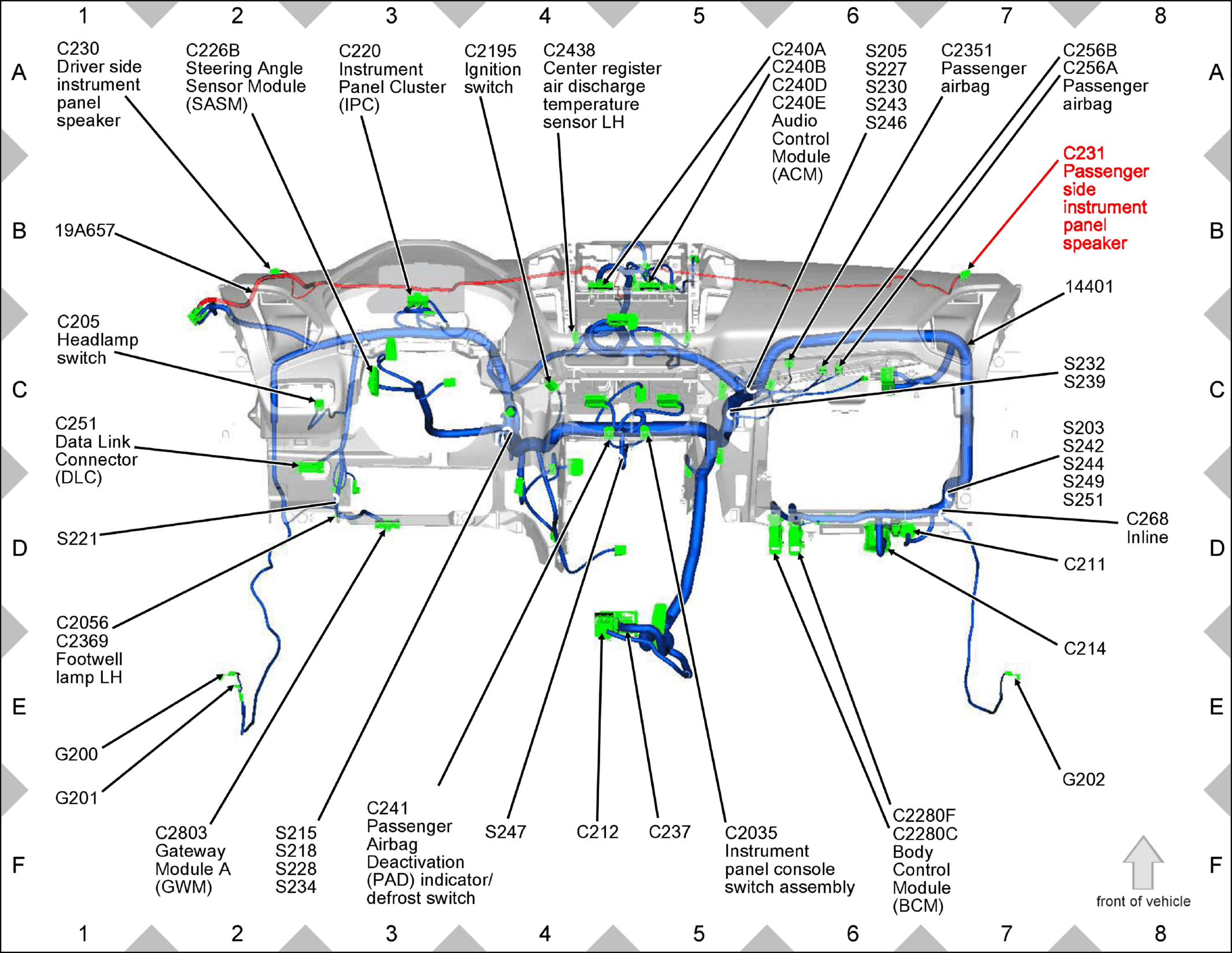

Fig 1: Passenger Side Instrument Panel Speaker Components Location

GFDW66248

Courtesy of FORD MOTOR COMPANY
