Passenger Seat Front Height Motor

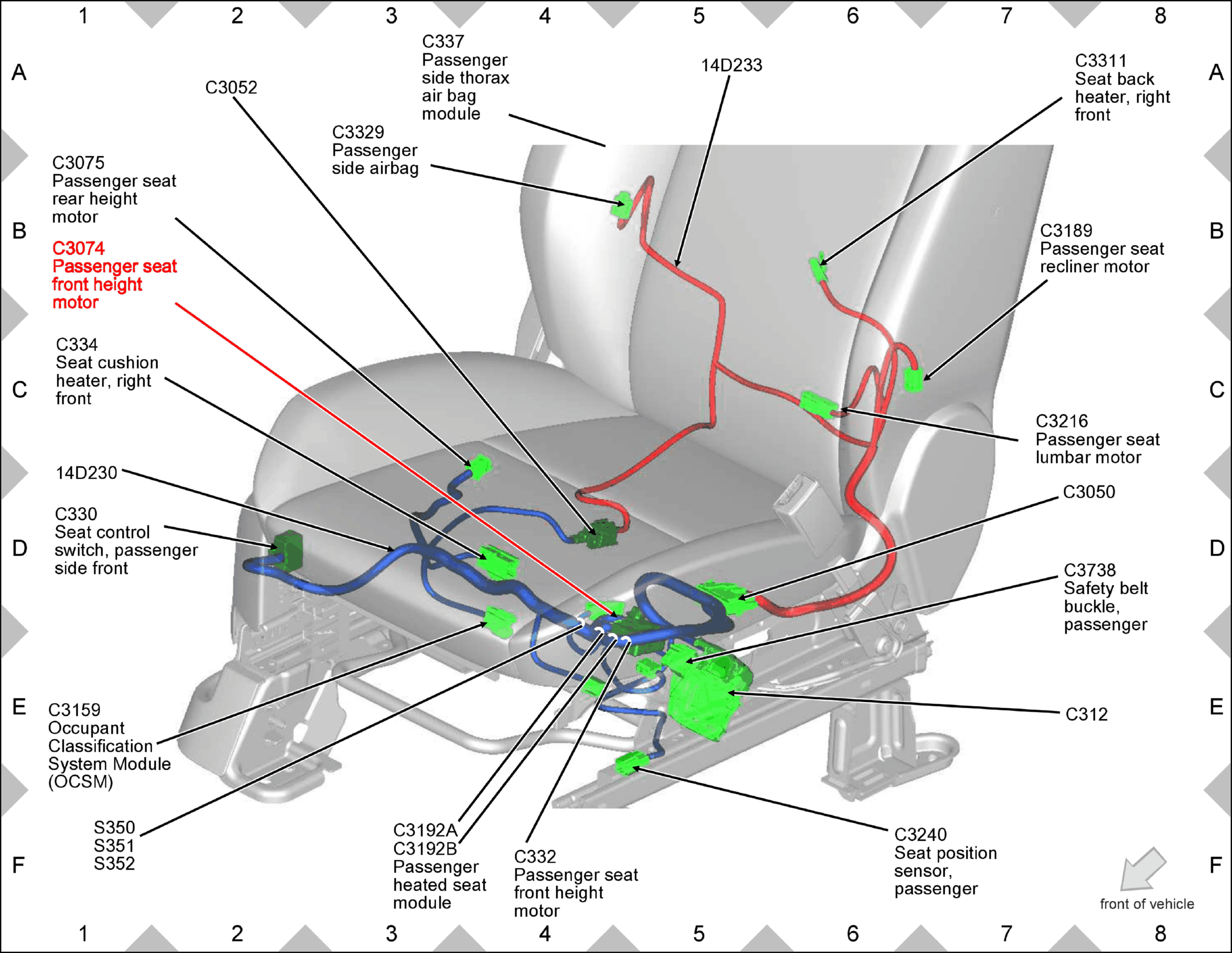

Fig 1: Passenger Seat Front Height Motor Components Location

GFDW66242

Courtesy of FORD MOTOR COMPANY
