Passenger Front Door Side Impact Sensor

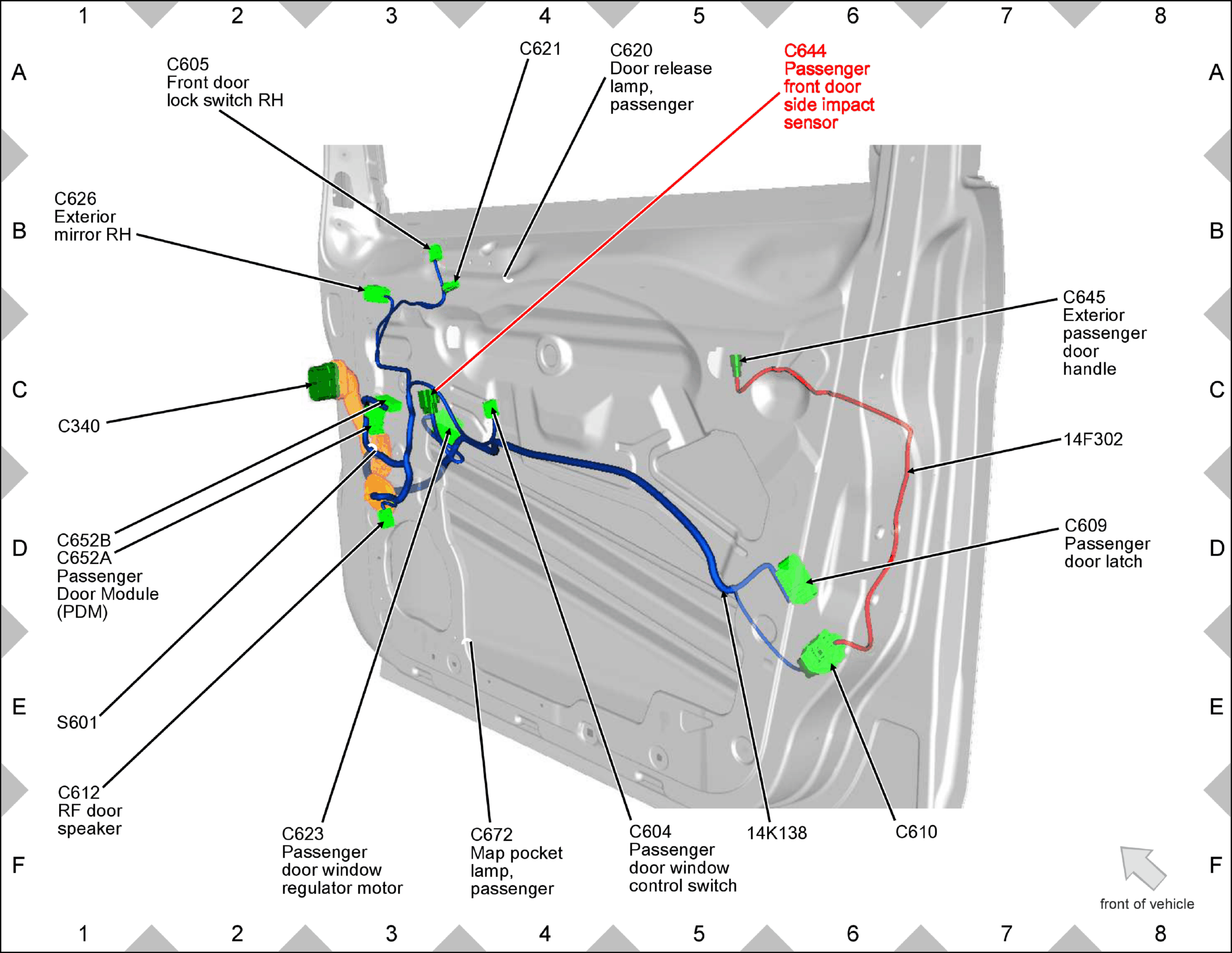

Fig 1: Passenger Front Door Side Impact Sensor Components Location

GFDW66238

Courtesy of FORD MOTOR COMPANY
