Parking Brake Warning Indicator Switch

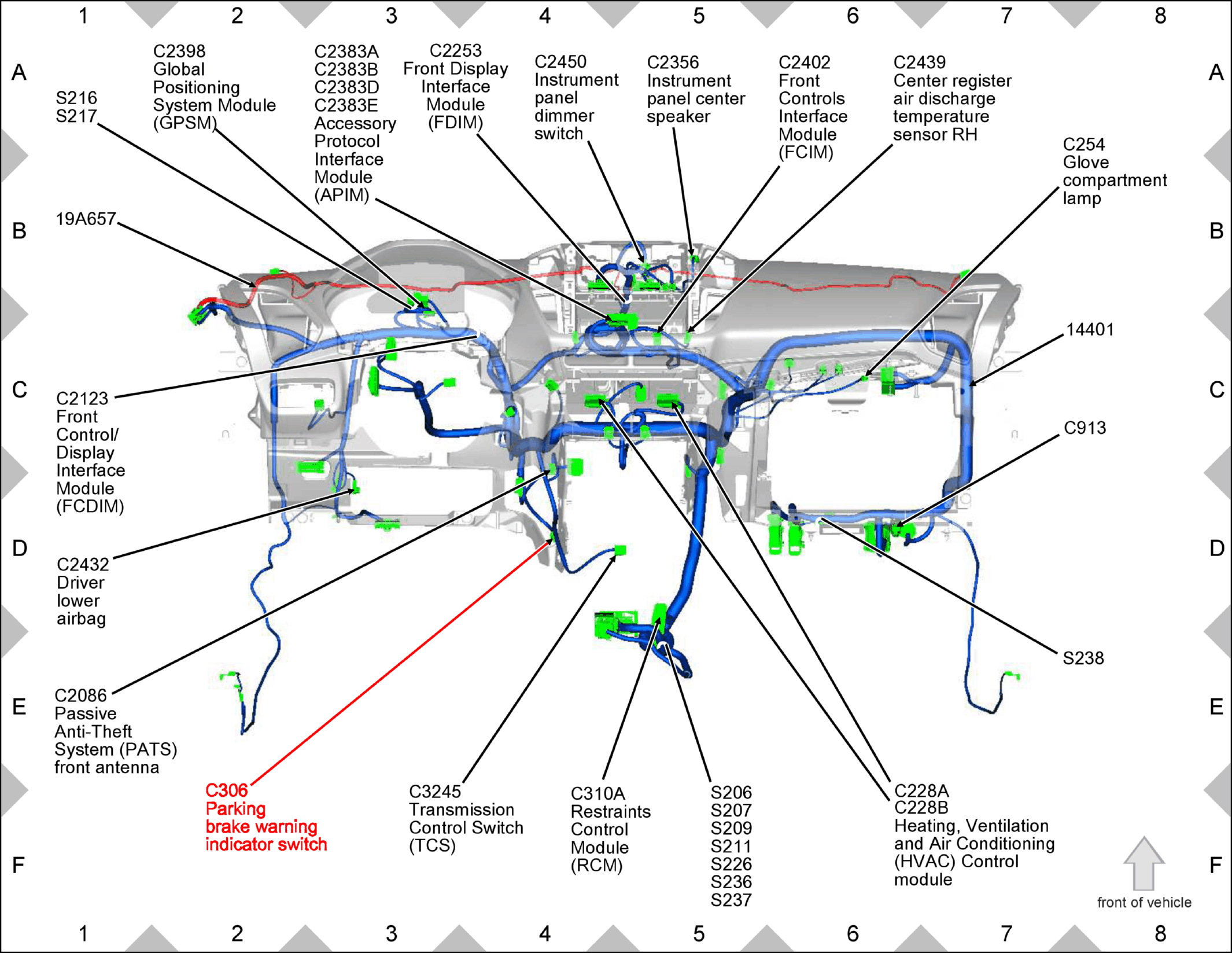

Fig 1: Parking Brake Warning Indicator Switch Components Location

GFDW66231

Courtesy of FORD MOTOR COMPANY
