Luggage Compartment Power Outlet Socket

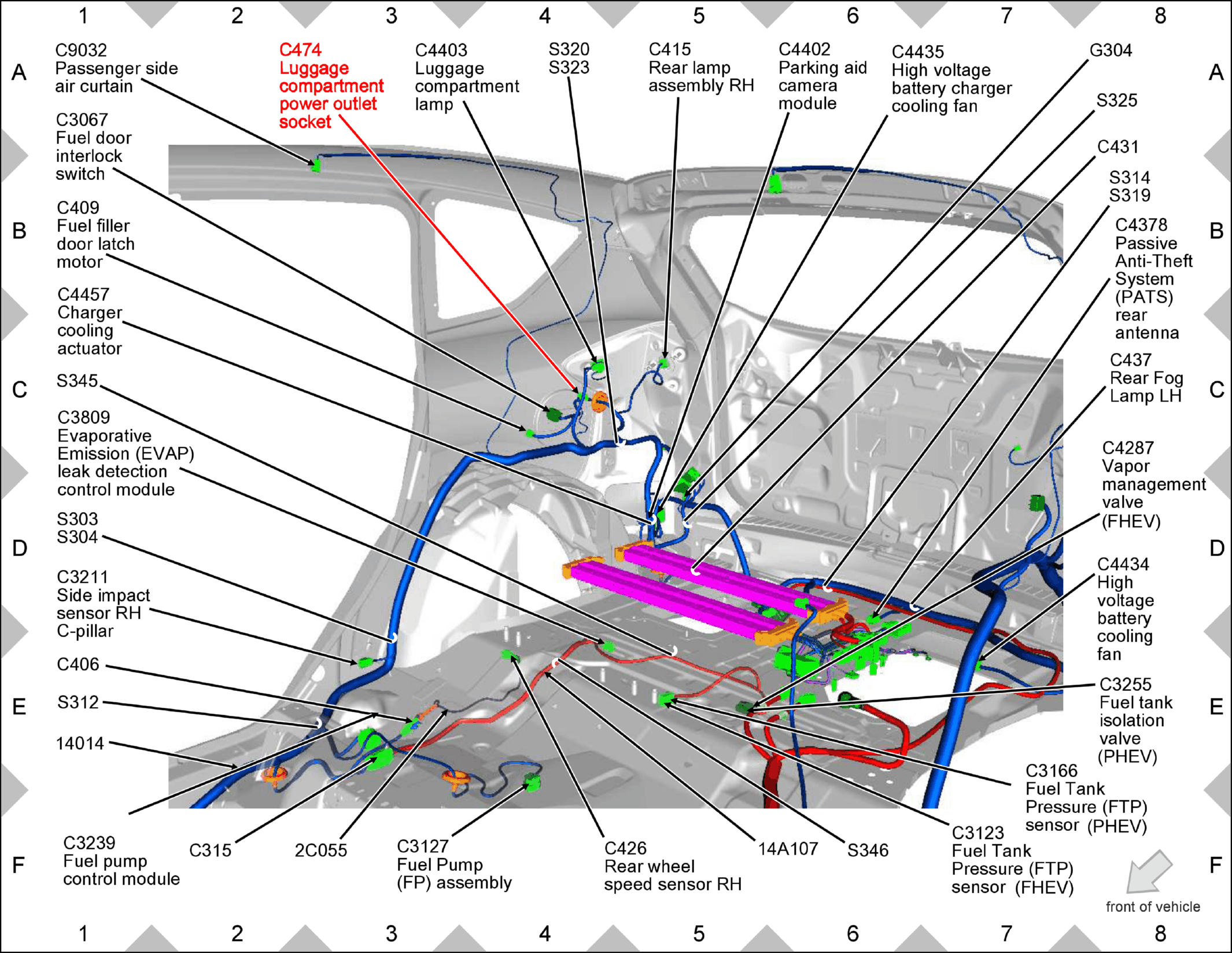

Fig 1: Luggage Compartment Power Outlet Socket Components Location

GFDW66217

Courtesy of FORD MOTOR COMPANY
