Instrument Panel Cluster (IPC)
Instrument Panel Cluster (IPC)

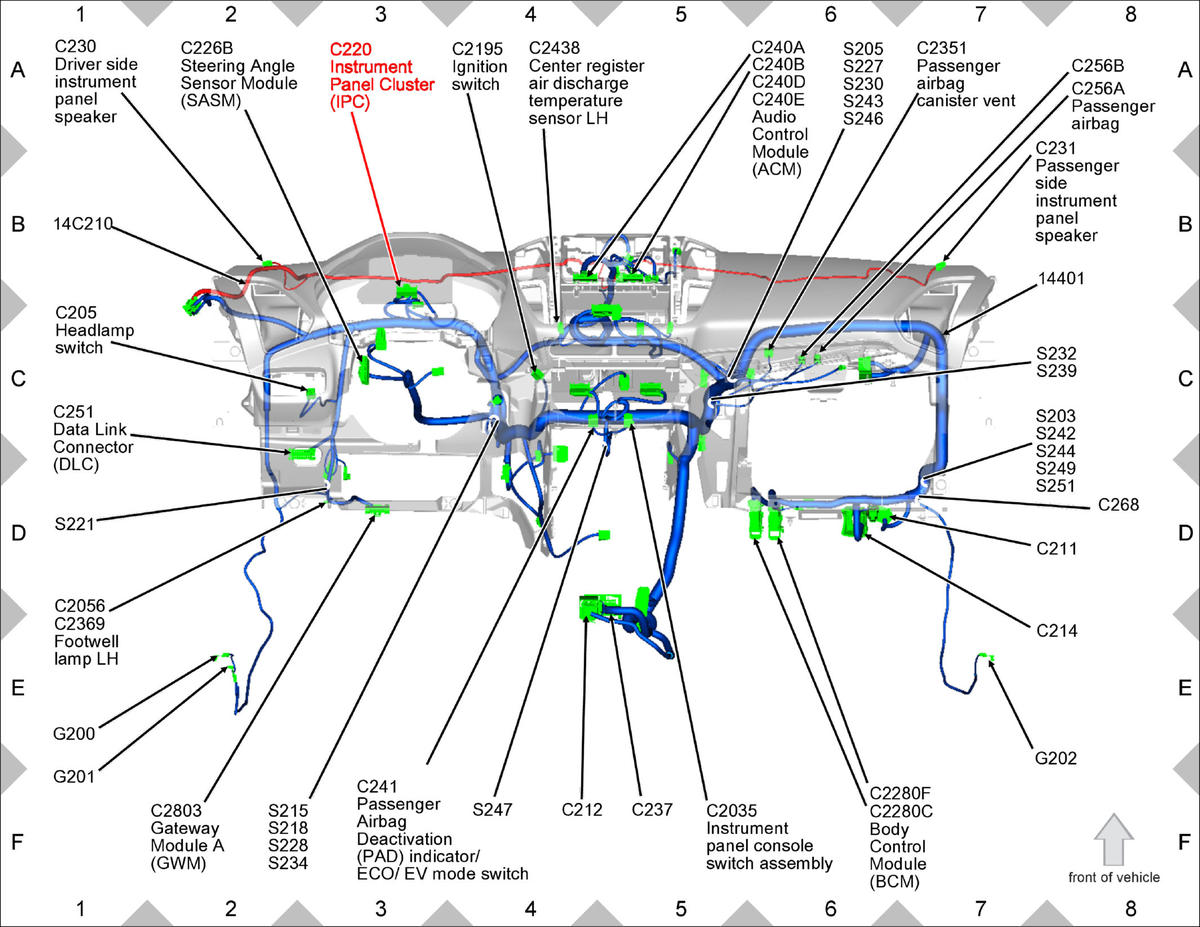

Fig 1: Instrument Panel Cluster (IPC) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
