Ignition Switch (With IA)
Ignition Switch (With IA)

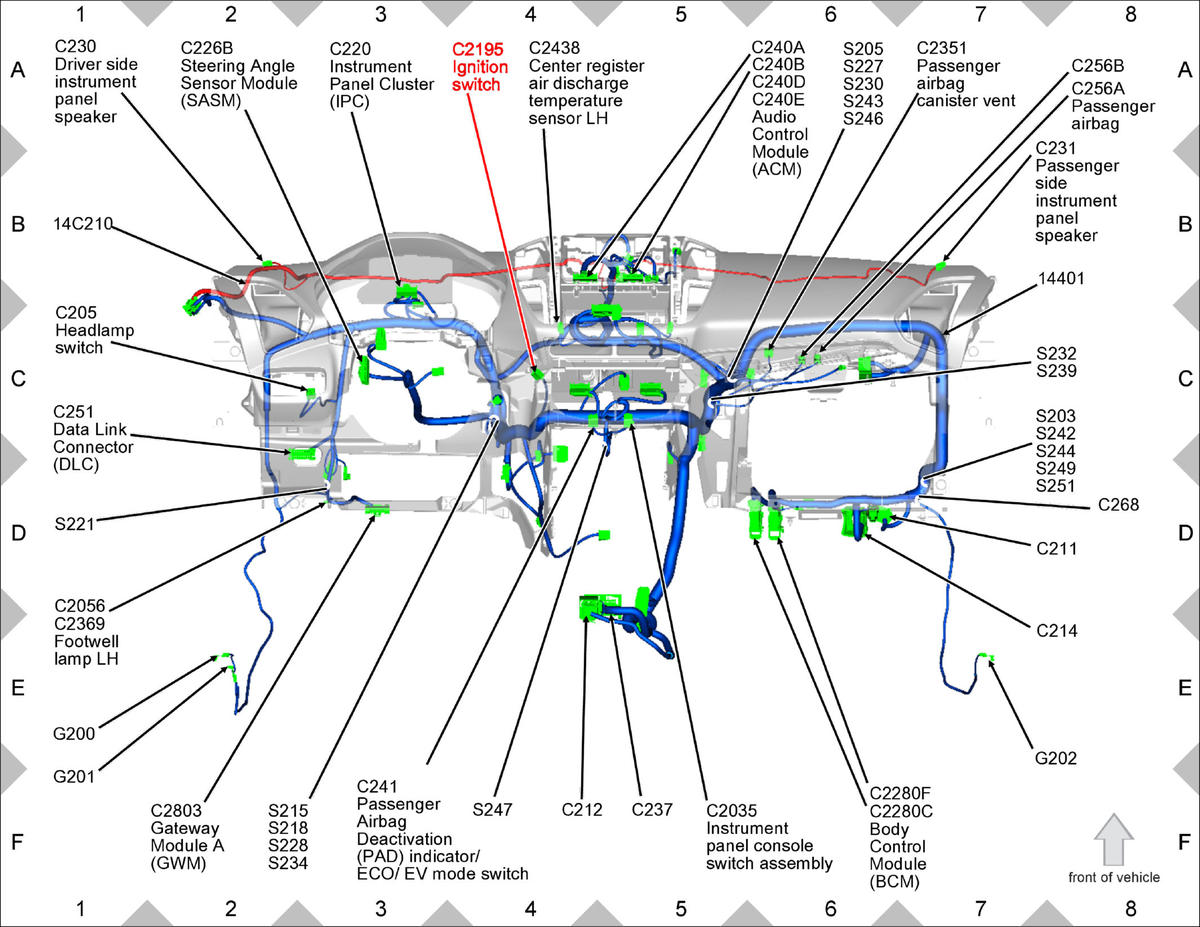

Fig 1: Ignition Switch (With IA) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
