Front Fog Lamp LH

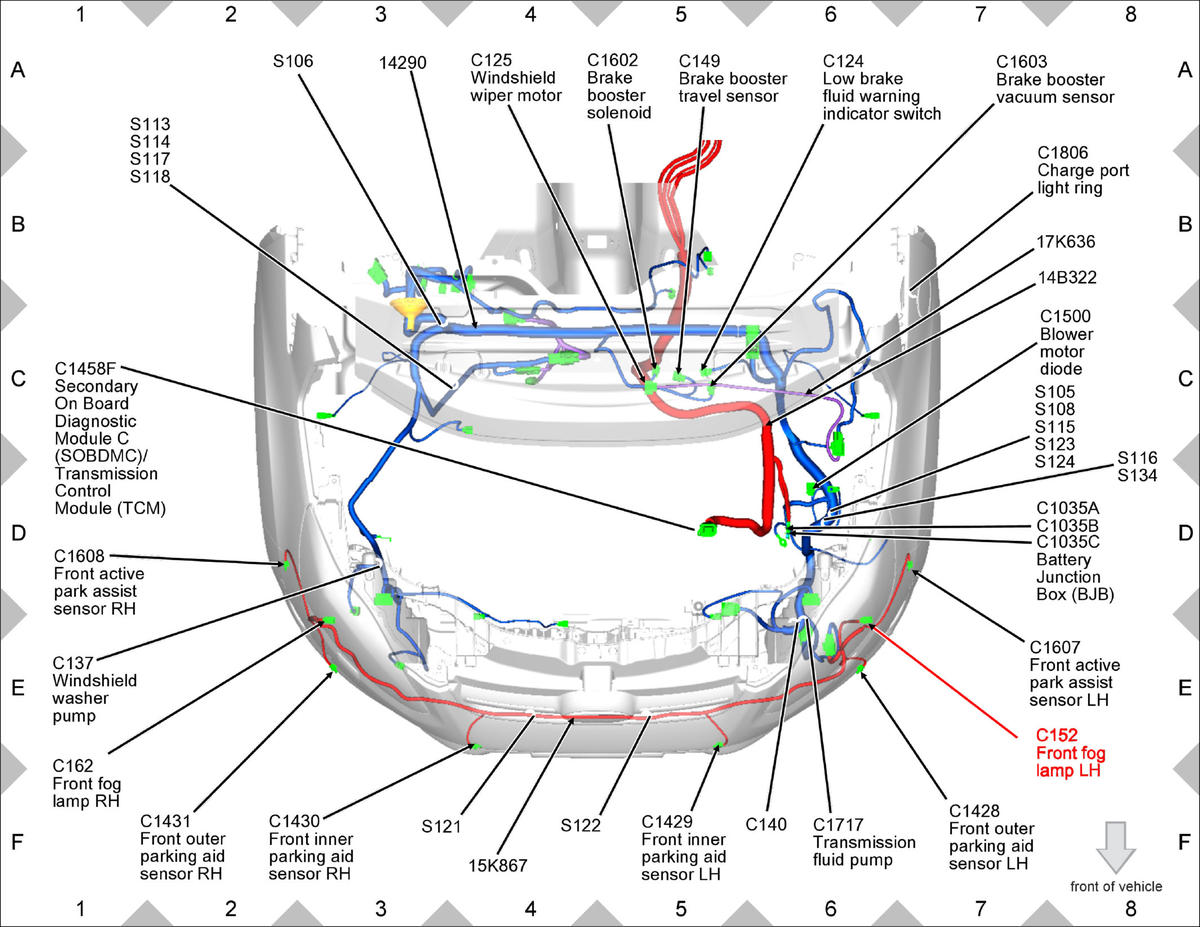

Fig 1: Front Fog Lamp LH Components Location

GFDW88246

Courtesy of FORD MOTOR COMPANY
