Footwell lamp LH (with ambient lighting)

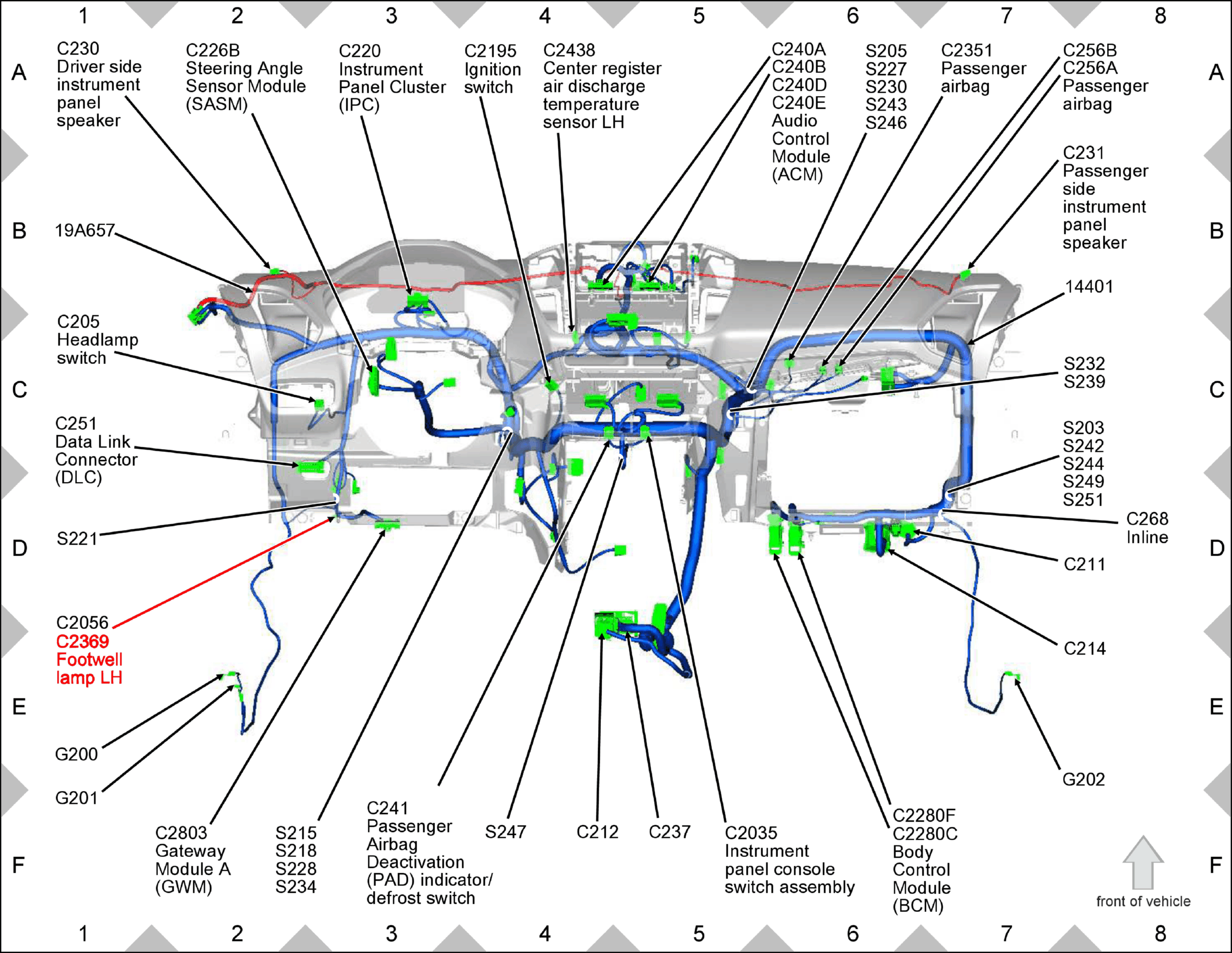

Fig 1: Footwell Lamp LH (With Ambient Lighting) Components Location

GFDW66137

Courtesy of FORD MOTOR COMPANY
