Floor Console Cup Holder Ambient Lighting Lamp

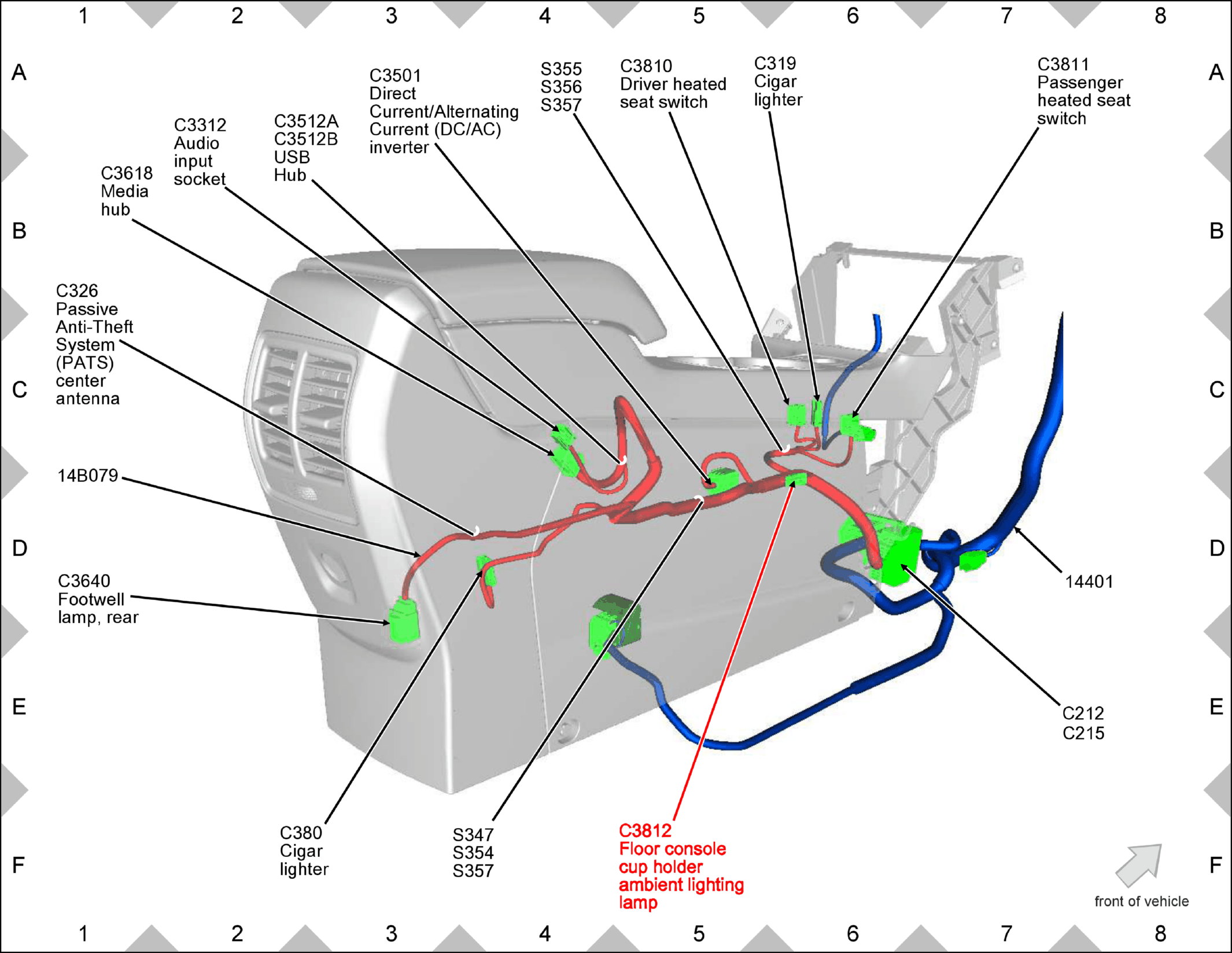

Fig 1: Floor Console Cup Holder Ambient Lighting Lamp Components Location

GFDW66135

Courtesy of FORD MOTOR COMPANY
