Exterior Mirror Blind Spot (BLIS) Or Cross Traffic Alert (CTA) LED RH

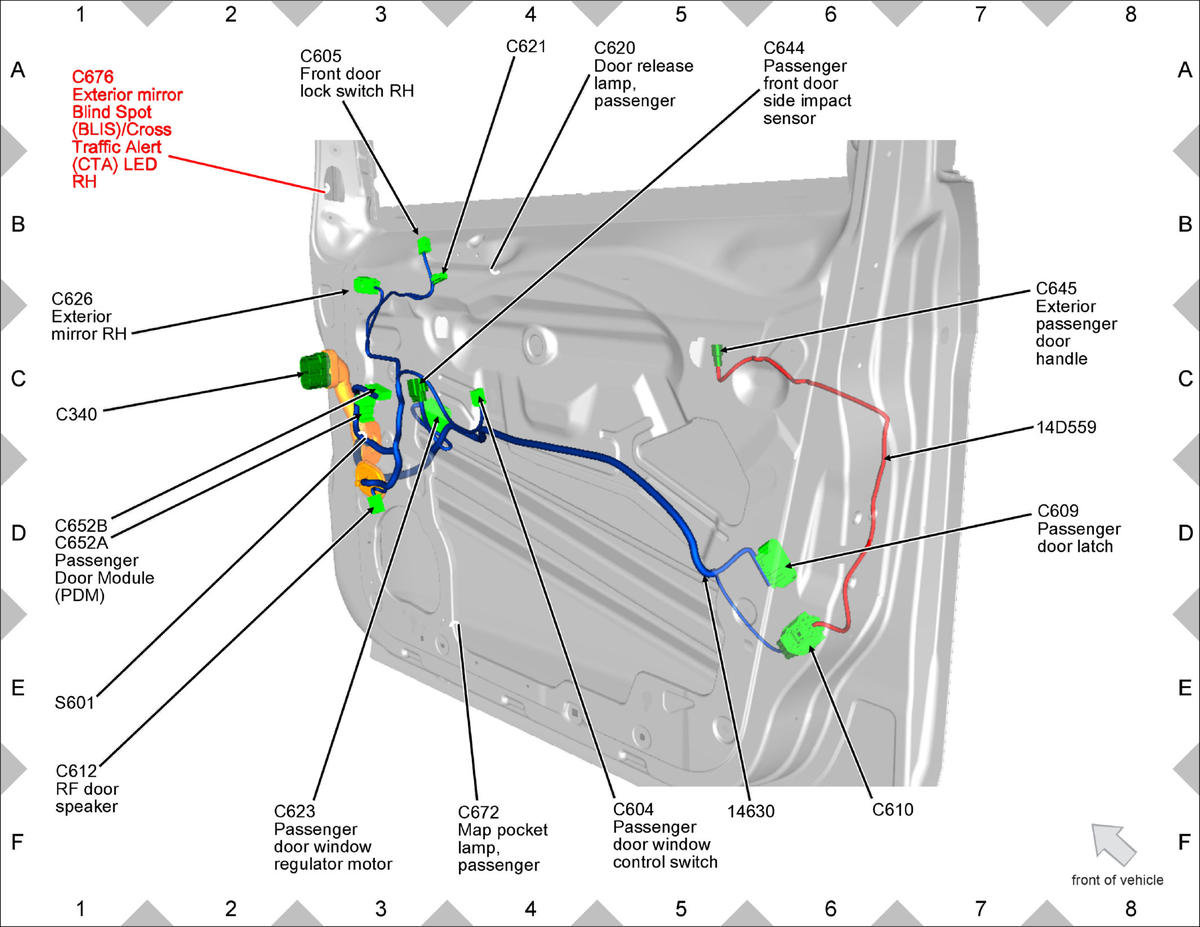

Fig 1: Exterior Mirror Blind Spot (BLIS) Or Cross Traffic Alert (CTA) LED RH Components Location

GFDW88239

Courtesy of FORD MOTOR COMPANY
