Exterior Mirror Blind Spot (BLIS) Or Cross Traffic Alert (CTA) LED LH

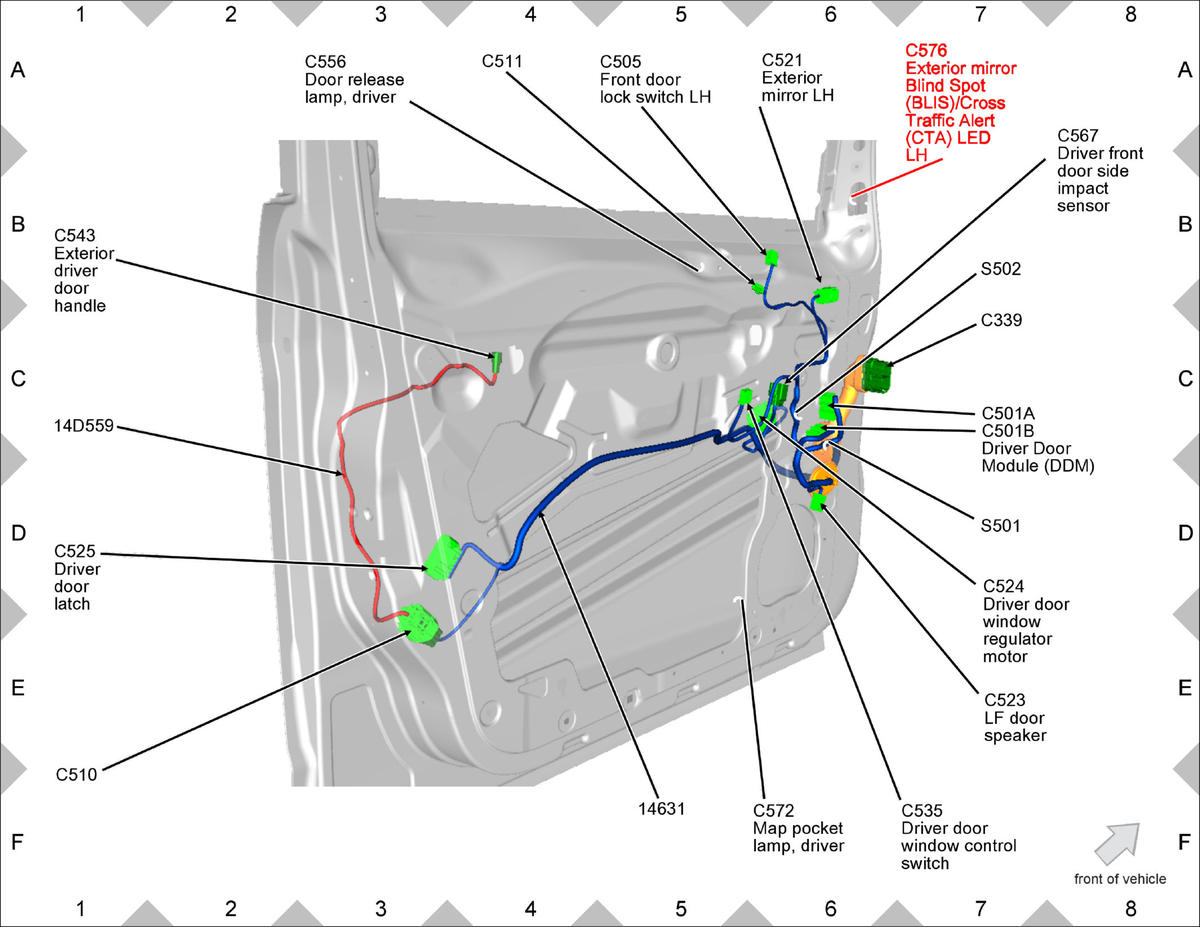

Fig 1: Exterior Mirror Blind Spot (BLIS) Or Cross Traffic Alert (CTA) LED LH Components Location

GFDW88238

Courtesy of FORD MOTOR COMPANY
