Electric Exhaust Gas Recirculation (EEGR) Valve

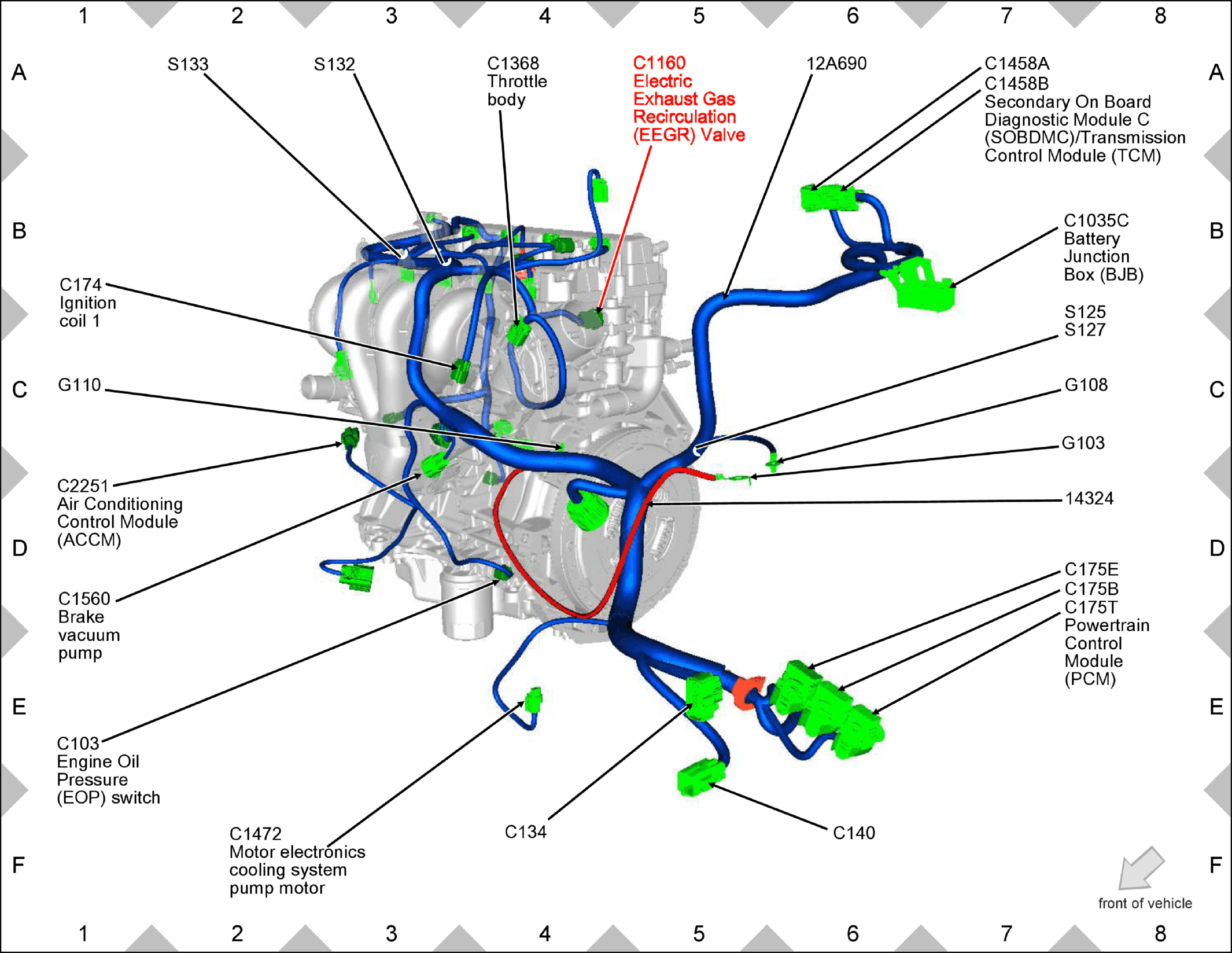

Fig 1: Electric Exhaust Gas Recirculation (EEGR) Valve Components Location

GFDW66124

Courtesy of FORD MOTOR COMPANY
