Driver Side Instrument Panel Speaker

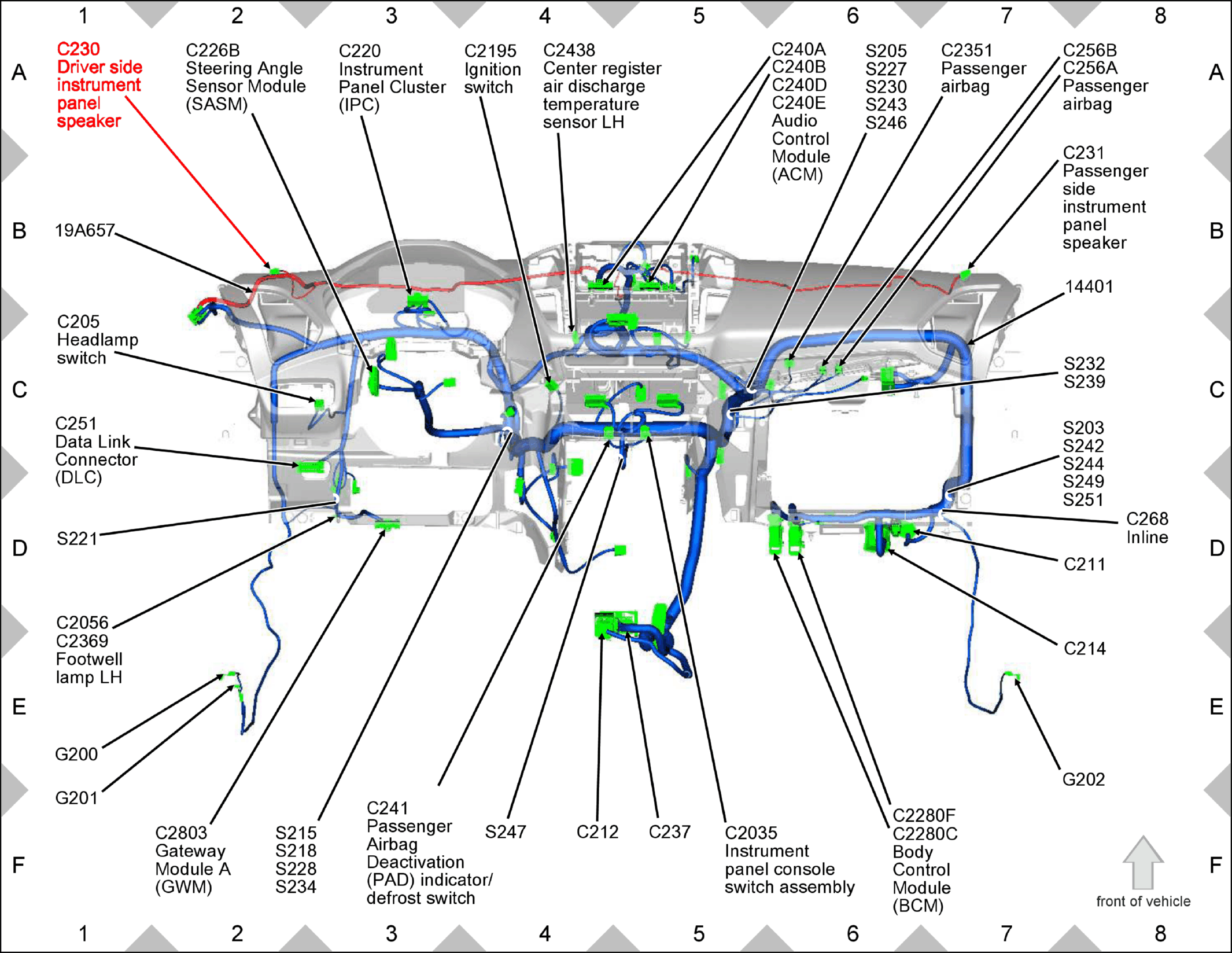

Fig 1: Driver Side Instrument Panel Speaker Components Location

GFDW66121

Courtesy of FORD MOTOR COMPANY
