Driver Seat Recliner Motor
Driver Seat Recliner Motor

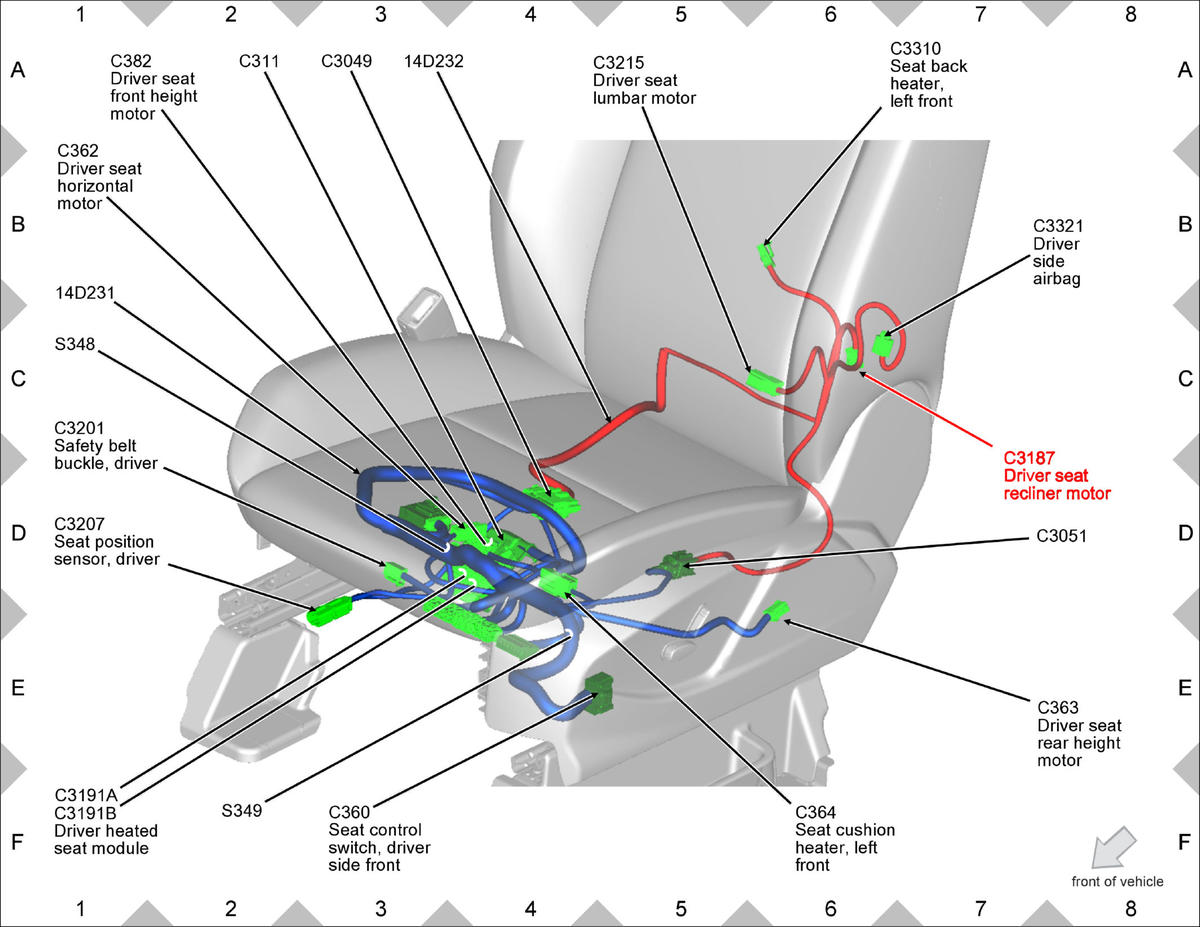

Fig 1: Driver Seat Recliner Motor Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
