Defrost Ventorregister Blend Door Actuator

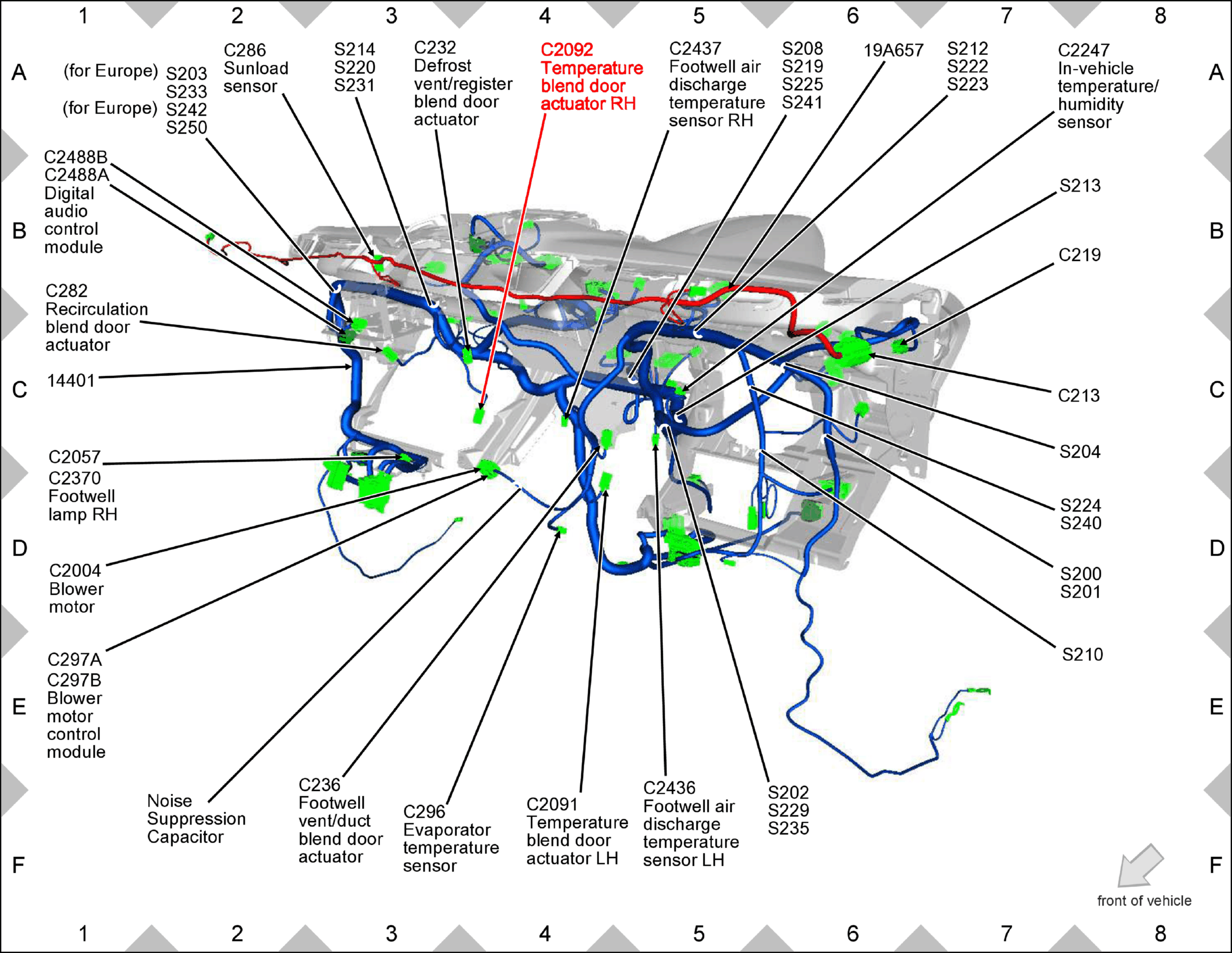

Fig 1: Defrost Ventorregister Blend Door Actuator Components Location

GFDW66098

Courtesy of FORD MOTOR COMPANY
