Home >> Ford >> 2017 >> C-Max Hybrid Titanium >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts >> Component Location Charts >> Coil On Plug (COP) 2

Coil On Plug (COP) 2

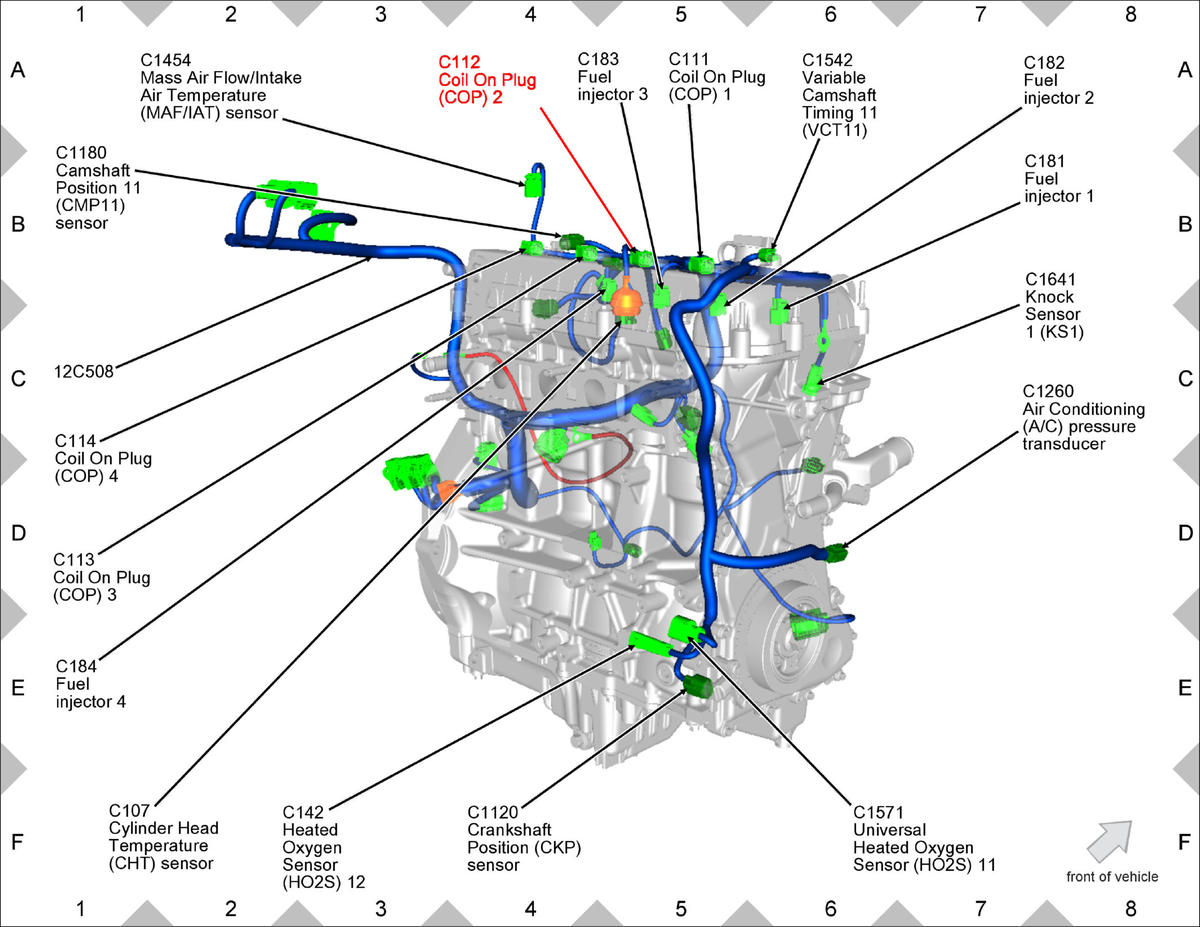

Fig 1: Coil On Plug (COP) 2 Components Location

GFDW88212

Courtesy of FORD MOTOR COMPANY
