Charge Port Light Ring

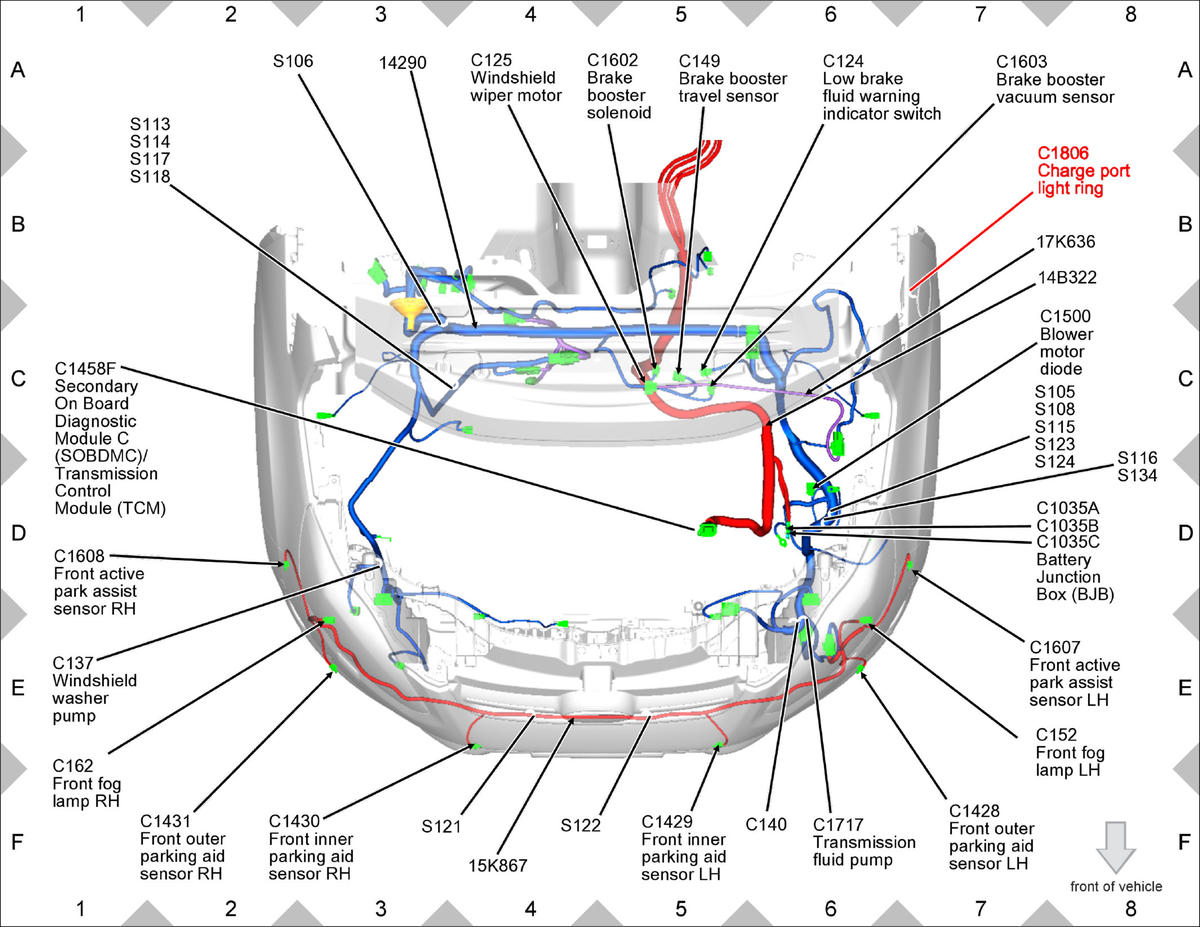

Fig 1: Charge Port Light Ring Components Location

GFDW88208

Courtesy of FORD MOTOR COMPANY
