Active Noise Control Microphone-2 (With Sunshade)
Active Noise Control Microphone-2 (With Sunshade)

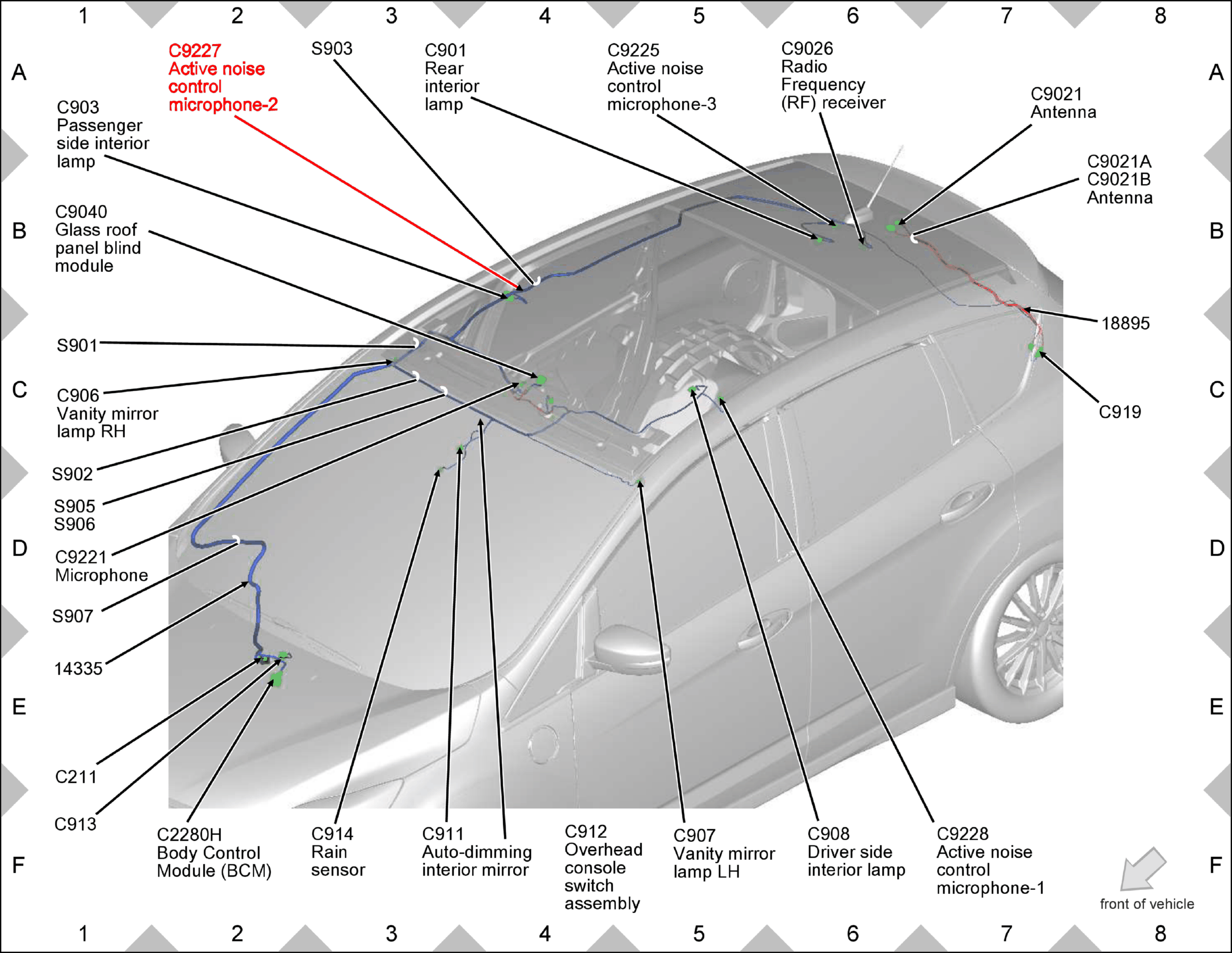

Fig 1: Active Noise Control Microphone-2 (With Sunshade) Components Location
Courtesy of FORD MOTOR COMPANY
