Fuel Tank: Removal
WARNING:
Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
- Refer to: Gasoline And Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking And Lifting - Overview .
- Release the fuel system pressure. REFER to: Fuel System Pressure Release .
- Drain the fuel tank. REFER to: Fuel Tank Draining .

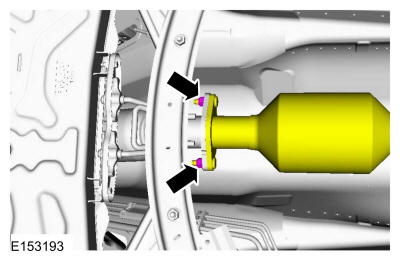

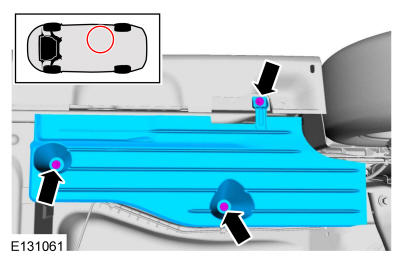

- Torque: 18 lb.ft (25 Nm)

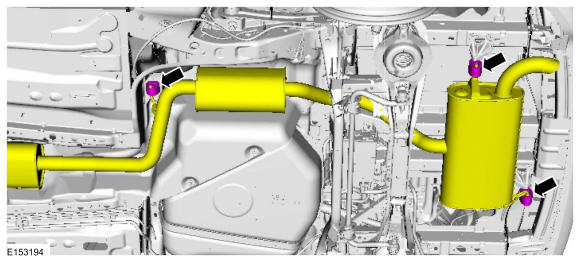

- Torque: 35 lb.ft (48 Nm)

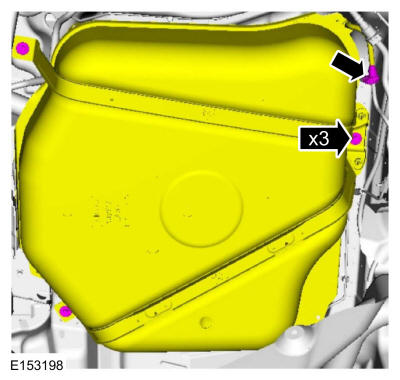

- Use the General Equipment: Powertrain Jack
Torque: 18 lb.ft (25 Nm)
