Fuel Lines: Removal

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline And Gasoline-Ethanol Fuel Systems Health And Safety Precautions .
Release the fuel system pressure. REFER to: Fuel System Pressure Release .
Disconnect the battery ground cable. REFER to: Battery Cables - Hybrid Electric Vehicle (HEV) .

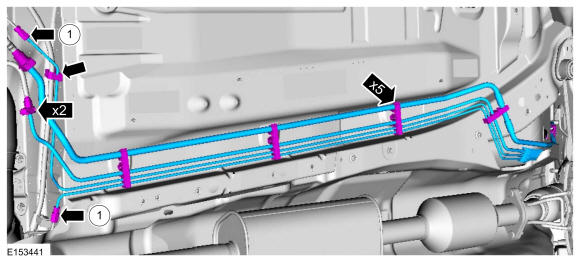

1. Refer to: Quick Release Coupling .
  Torque

  : 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

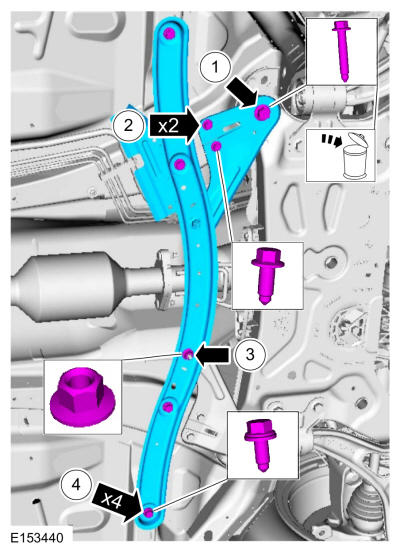

1. Discard the specified component. Follow local disposal regulations.
  Torque

  :Stage 1: 103 lb.ft (140 Nm)

  Stage 2: 180 °
2. Torque: 46 lb.ft (62 Nm)
3. Torque: 35 lb.ft (47 Nm)
4. Torque: 35 lb.ft (47 Nm)
Courtesy of FORD MOTOR COMPANY

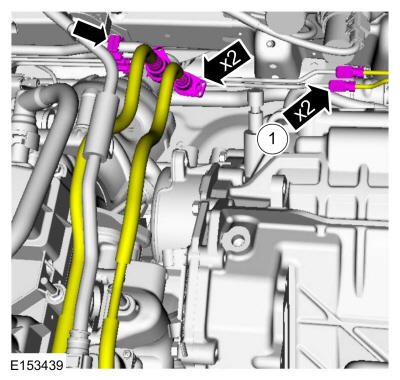

1. Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
