Engine - Plug-In Hybrid Electric Vehicle (PHEV)

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Base Part Number: 6L084

Special Tool(s) / General Equipment

014-00001
Courtesy of FORD MOTOR COMPANY	300-OTC1585AEPowertrain Lift
Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away

1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health And Safety Precautions .

2. 1. Refer to: Jacking And Lifting - Overview
   2. Refer to: Fuel System Pressure Release .
   3. Refer to: High Voltage Battery Disconnect And Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
   4. Refer to: Battery Disconnect And Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
   5. Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
   6. Refer to: Cooling System Draining, Filling And Bleeding .
   7. Refer to: Cooling System Draining, Filling And Bleeding .
3. Remove the following items:
   1. Refer to: Degas Bottle .
   2. Refer to: Air Cleaner .
   3. Refer to: Air Cleaner Outlet Pipe .
   4. Refer to: Air Cleaner Intake Pipe .
   5. Refer to: Transmission Control Module (TCM) .

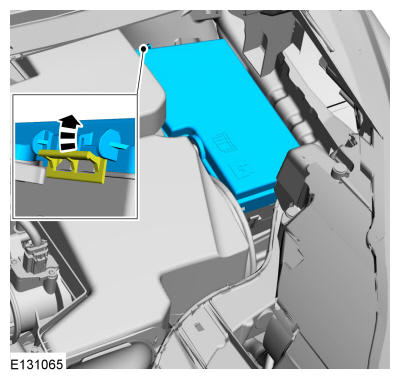

4. Courtesy of FORD MOTOR COMPANY

5. Courtesy of FORD MOTOR COMPANY

6. Courtesy of FORD MOTOR COMPANY

7. Refer to: Quick Release Coupling (310-00 Fuel System - General Information, General Procedures).

   Courtesy of FORD MOTOR COMPANY

8. Courtesy of FORD MOTOR COMPANY

9. Courtesy of FORD MOTOR COMPANY

10. Courtesy of FORD MOTOR COMPANY

11. Remove the following items:
    1. Refer to: Cooling Module .
    2. Refer to: Front Halfshaft LH .
    3. Refer to: Front Halfshaft RH .
    4. NOTE: LH side only.

       Refer to: Fender Splash Shield .

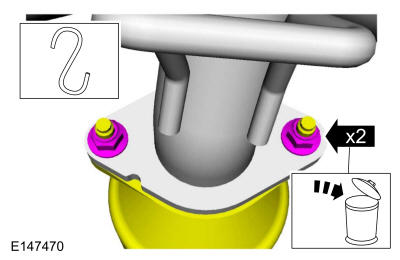

12. Courtesy of FORD MOTOR COMPANY

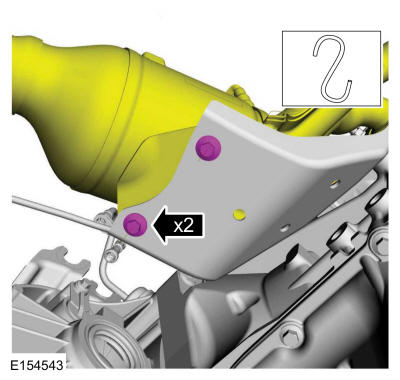

13. Courtesy of FORD MOTOR COMPANY

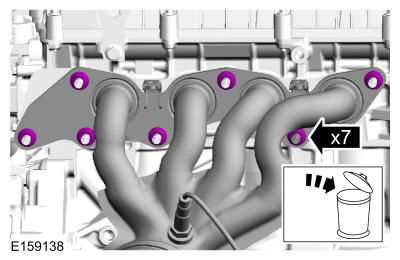

14. Courtesy of FORD MOTOR COMPANY

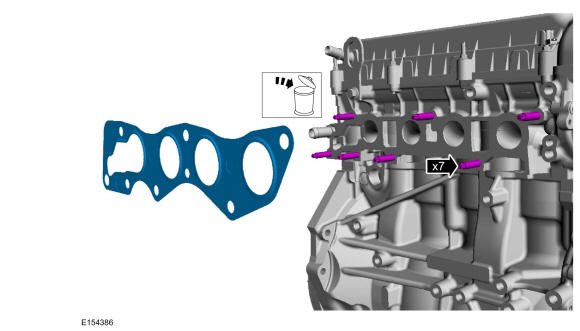

15. Courtesy of FORD MOTOR COMPANY

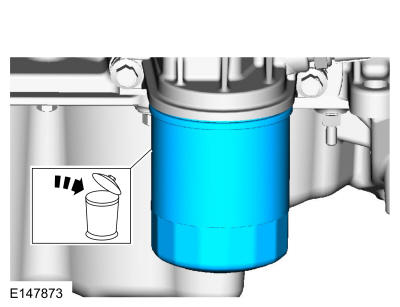

16. Courtesy of FORD MOTOR COMPANY

17. Courtesy of FORD MOTOR COMPANY

18. Courtesy of FORD MOTOR COMPANY

19. Courtesy of FORD MOTOR COMPANY

20. Courtesy of FORD MOTOR COMPANY

21. Courtesy of FORD MOTOR COMPANY

22. Courtesy of FORD MOTOR COMPANY

23. Courtesy of FORD MOTOR COMPANY

24. Courtesy of FORD MOTOR COMPANY

25. Refer to: Roll Restrictor RH .

26. Courtesy of FORD MOTOR COMPANY

27. Courtesy of FORD MOTOR COMPANY

28. Courtesy of FORD MOTOR COMPANY

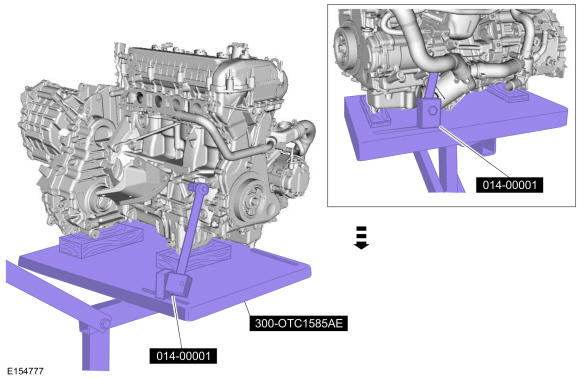

29. Install Special Service Tool: 300-OTC1585AE Powertrain Lift., 014-00001.

    Courtesy of FORD MOTOR COMPANY

30. Courtesy of FORD MOTOR COMPANY

31. Courtesy of FORD MOTOR COMPANY

32. Use Special Service Tool: 300-OTC1585AE Powertrain Lift., 014-00001.

    Courtesy of FORD MOTOR COMPANY

33. Courtesy of FORD MOTOR COMPANY

34. Courtesy of FORD MOTOR COMPANY

35. Courtesy of FORD MOTOR COMPANY

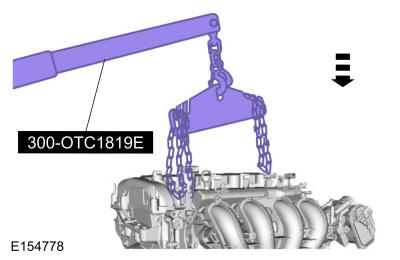

36. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

    Courtesy of FORD MOTOR COMPANY

37. Remove Special Service Tool: 300-OTC1585AE Powertrain Lift., 014-00001.

    Courtesy of FORD MOTOR COMPANY

38. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

    Courtesy of FORD MOTOR COMPANY

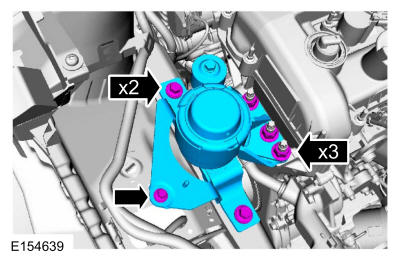

39. Courtesy of FORD MOTOR COMPANY

40. Courtesy of FORD MOTOR COMPANY

41. NOTE: The transaxle-to-engine bolts differ in length. Note the location of the bolts for correct installation.

    Courtesy of FORD MOTOR COMPANY
