Variable Valve Timing (VVT) Unit: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

  2. Refer to: Timing Drive Components .

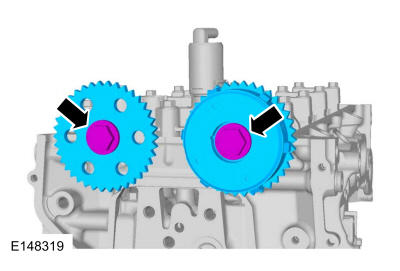

  3. GFD223371Courtesy of FORD MOTOR COMPANY
