Valve Stem Seals: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. Refer to: Valve Springs .

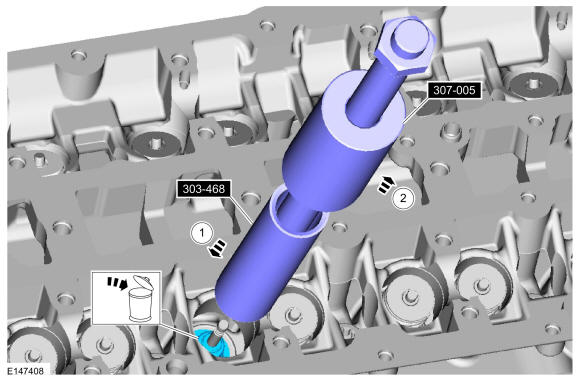

  2. Use Special Service Tool: 303-468 (T94P-6510-AH) Remover, Valve Stem Oil Seal., 307-005 (T59L-100-B) Slide Hammer.
    GFD223345Courtesy of FORD MOTOR COMPANY
