Valve Stem Seals: Installation

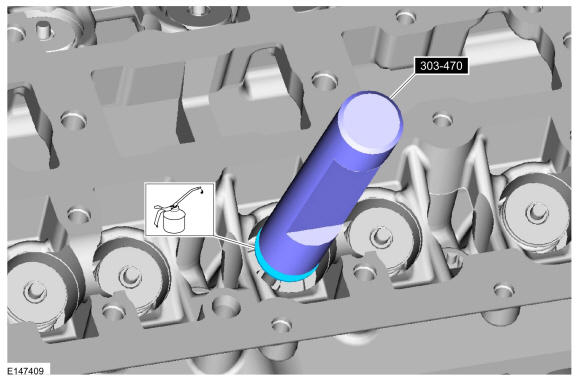

  1. NOTE: Use the protector provided with the replacement kit to prevent damage to the valve seals.

    Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.

    Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

    GFD223346Courtesy of FORD MOTOR COMPANY
  2. Refer to: Valve Springs .
