Valve Springs: Installation

  1. NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets.
    NOTE: Check the seating of the valve collets.

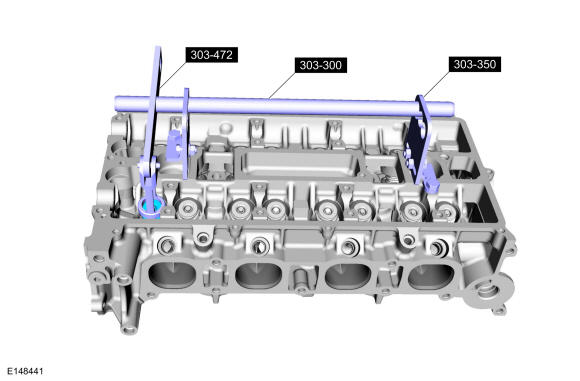

    1. Install the valve springs, valve spring retainers and the valve collets.Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor.

      Material

      : Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    2. Disconnect the compressed air supply.
    3. Repeat the appropriate removal and installation steps for all of the other cylinders.

    GFD223340Courtesy of FORD MOTOR COMPANY
  2. Refer to: Spark Plugs .
  3. Refer to: Valve Tappets .
