Valve Cover: Installation

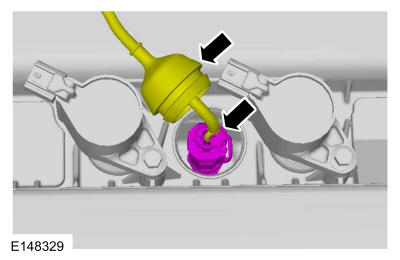

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

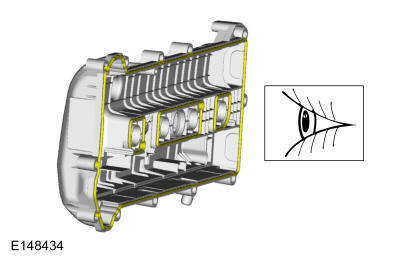

Inspect and if necessary, install new valve cover gaskets.

Courtesy of FORD MOTOR COMPANY

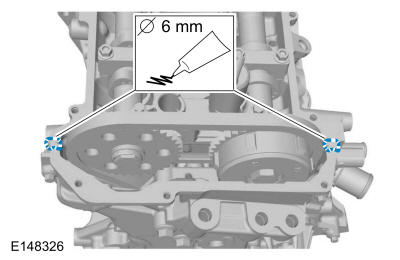

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Torque: 89 lb.in (10 Nm)

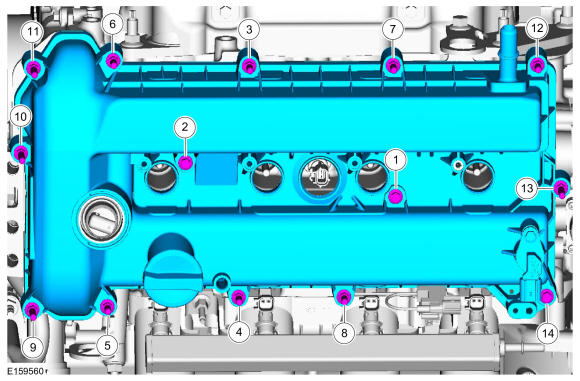

Fig 1: Valve Cover Tightening Sequence
Courtesy of FORD MOTOR COMPANY

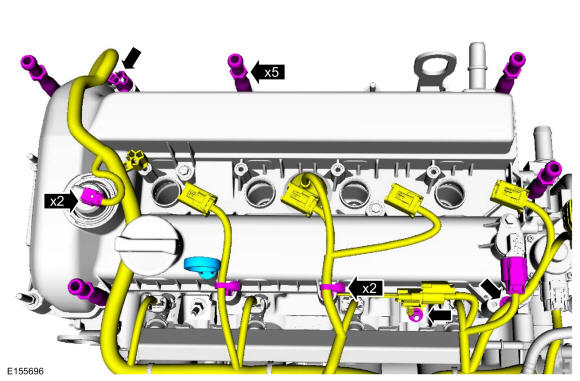

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

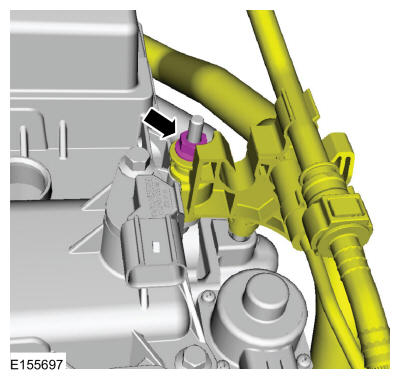

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Ignition Coil-On-Plug
Courtesy of FORD MOTOR COMPANY
Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Air Cleaner .
2. Refer to: Air Cleaner Outlet Pipe .
3. Refer to: Air Cleaner Intake Pipe .
