Timing Drive Components: Removal
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
NOTE:
If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health And Safety Precautions .
- Refer to: Jacking And Lifting - Overview .
-
- Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
- Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
-

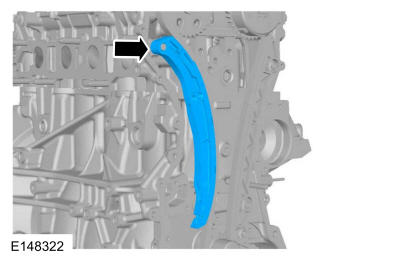

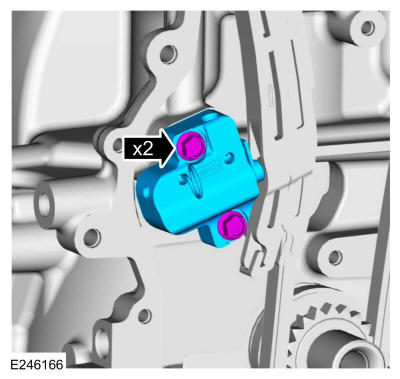

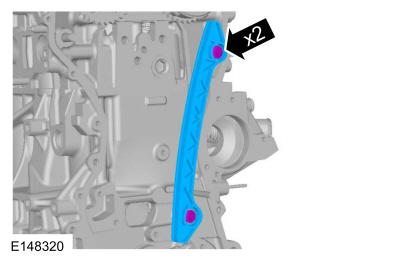

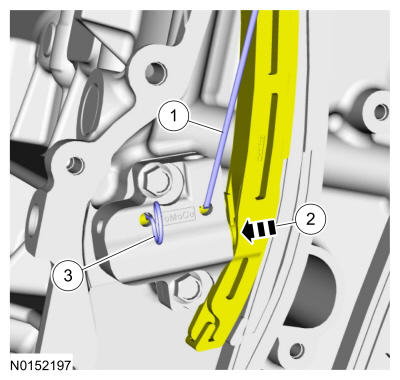

NOTE: If equipped with cast iron timing chain tensioner.
-
NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).NOTE: If equipped with cast iron timing chain tensioner.
-

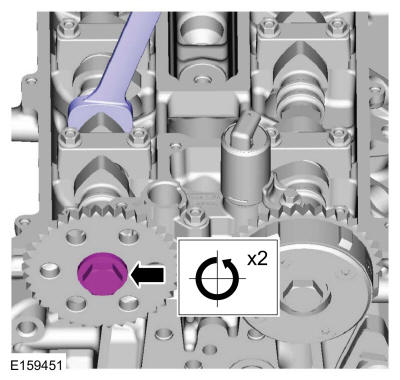

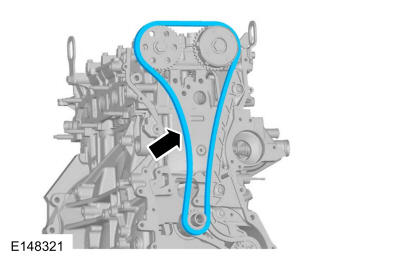

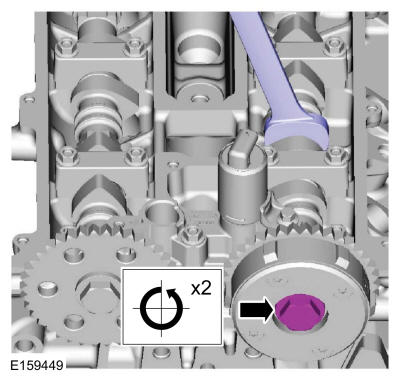

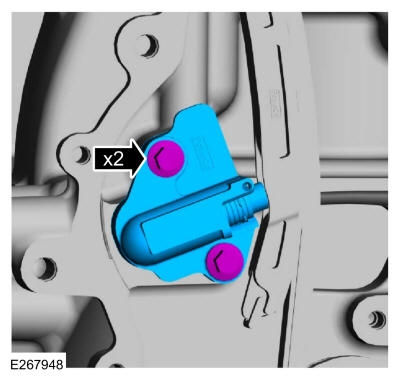

NOTE: If equipped with aluminum timing chain tensioner.
