Oil Pump: Removal

  1. Refer to: Oil Pump Screen and Pickup Tube .

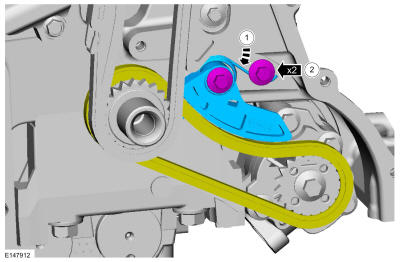

  2. GFD223303Courtesy of FORD MOTOR COMPANY
  3. GFD223304Courtesy of FORD MOTOR COMPANY

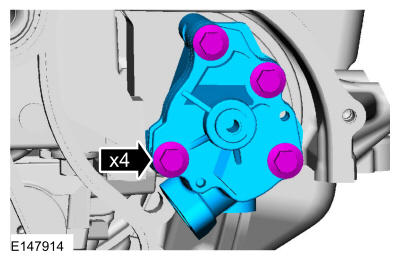

  4. GFD223305Courtesy of FORD MOTOR COMPANY
