Oil Pump Screen And Pickup Tube: Installation

  1. GFD223367Courtesy of FORD MOTOR COMPANY

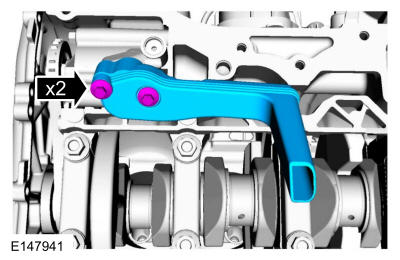

  2. Torque: 89 lb.in (10 Nm)
    GFD223365Courtesy of FORD MOTOR COMPANY
  3. Refer to: Oil Pan
