Oil Pressure Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking And Lifting - Overview .

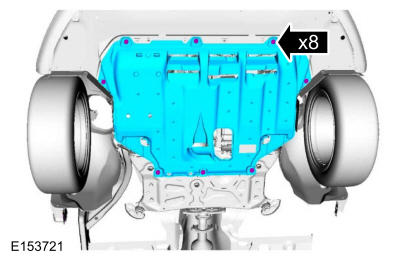

  2. GFD223229Courtesy of FORD MOTOR COMPANY

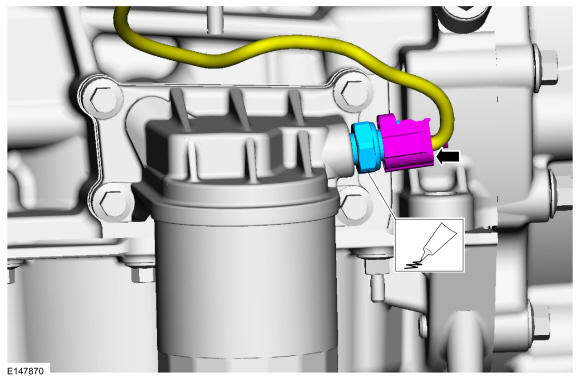

  3. Material: Motorcraft ® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
    GFD223364Courtesy of FORD MOTOR COMPANY
