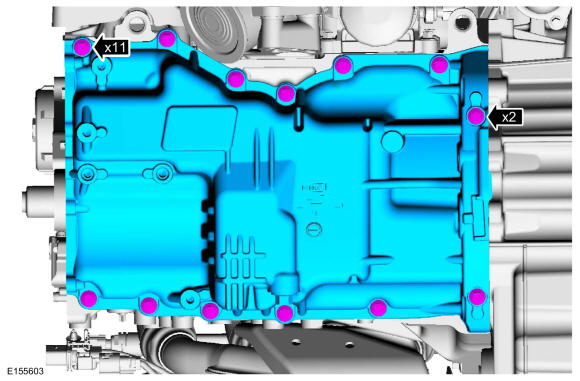

Oil Pan: Removal
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health And Safety Precautions .
-
- Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
- Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
- Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)
