Oil Pan: Installation

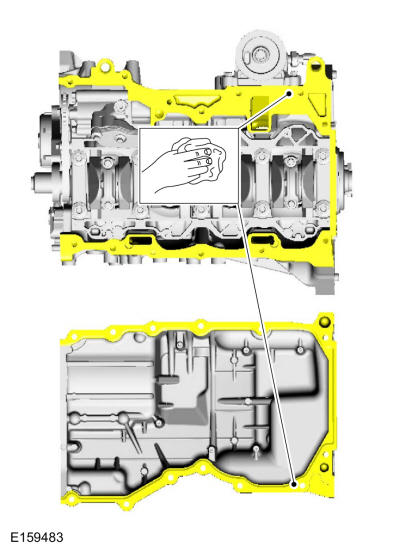

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

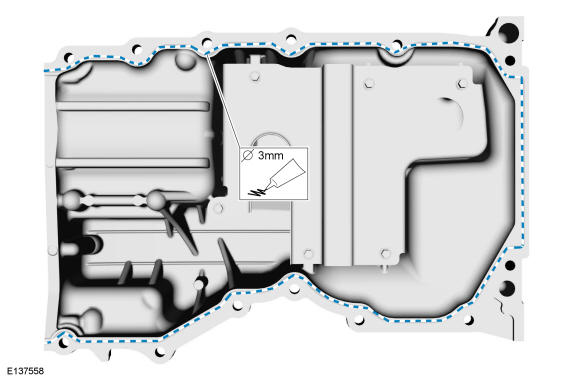

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

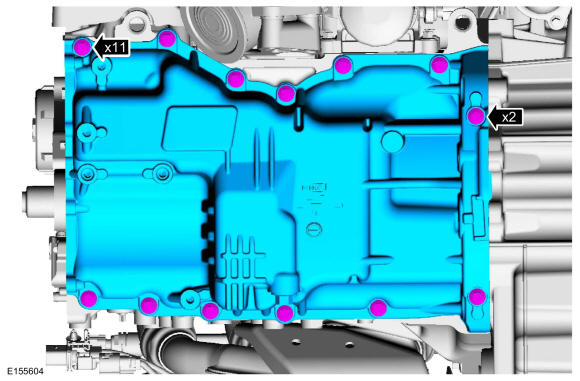

NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

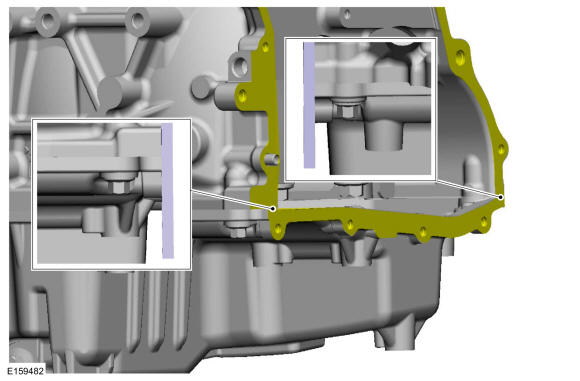

Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY
Torque: 177 lb.in (20 Nm)

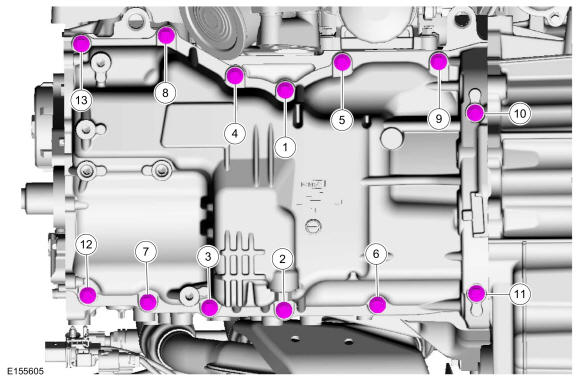

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

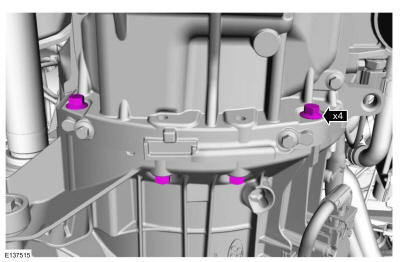

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
- Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
- Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
