Removal And Installation: Flywheel: Removal
-
NOTE: If the engine is being removed to access the flywheel, it is not necessary to drain the engine oil or remove the oil filter.
- Remove the engine.
- Refer to: Engine - Hybrid Electric Vehicle (HEV) .
- Refer to: Engine - Plug-In Hybrid Electric Vehicle (PHEV) .

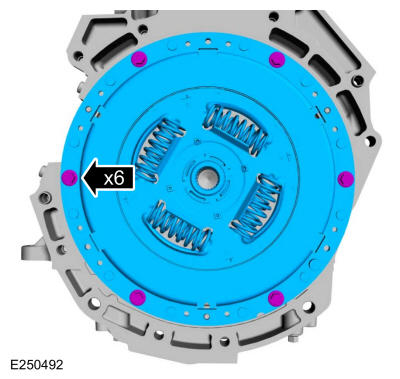

- Remove the bolts and the damper.

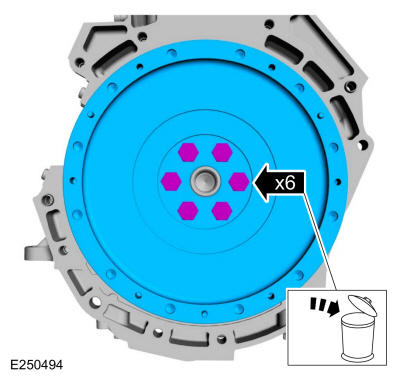

- Remove the bolts and the flywheel.
- Discard the bolts.
