Engine Mount: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Refer to: Wiper Linkage Assembly .
    2. Refer to: Air Cleaner .

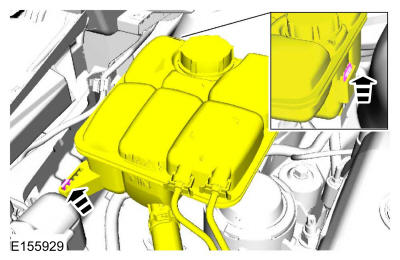

  3. GFD223356Courtesy of FORD MOTOR COMPANY

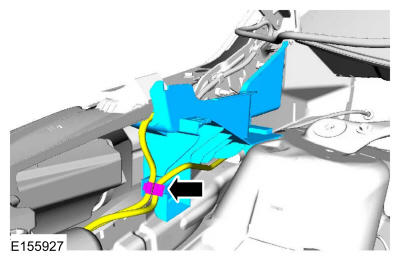

  4. GFD223357Courtesy of FORD MOTOR COMPANY

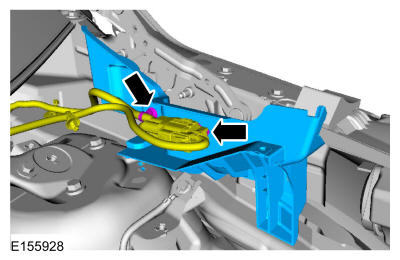

  5. GFD223358Courtesy of FORD MOTOR COMPANY

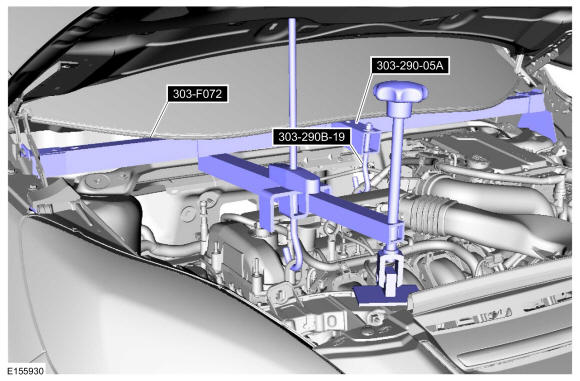

  6. Install Special Service Tool: 303-290-05A Adapter for 303-290A., 303-F072 Support Bar, Engine.
    GFD223359Courtesy of FORD MOTOR COMPANY

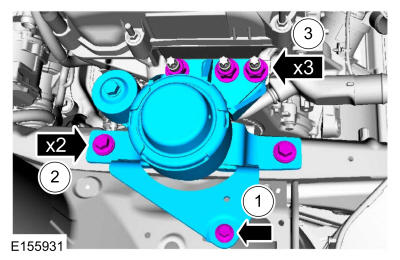

    1. Torque: 18 lb.ft (25 Nm)
    2. Torque: 66 lb.ft (90 Nm)
    3. Torque: 85 lb.ft (115 Nm)
    GFD223360Courtesy of FORD MOTOR COMPANY
