Engine Front Cover - Plug-In Hybrid Electric Vehicle (PHEV): Installation

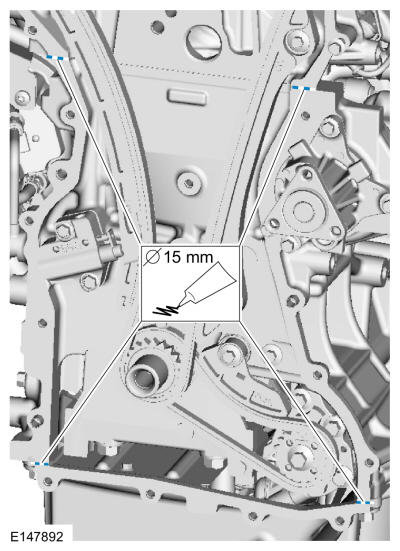

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: The component must be installed within 10 minutes of applying the sealant.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

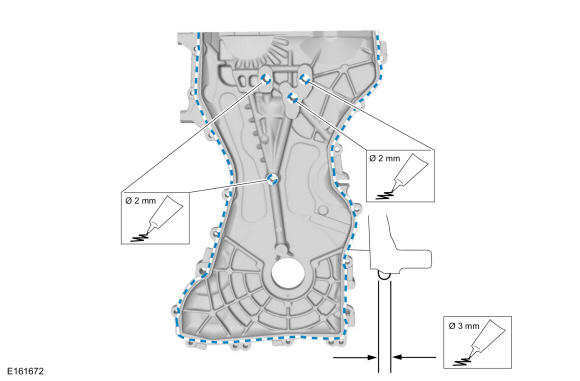

NOTE: The component must be installed within 10 minutes of applying the sealant.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
Torque
:Bolts 1 - 3: 35 lb.ft (48 Nm)

Bolts 4 - 13: 89 lb.in (10 Nm)

Bolt 14: 35 lb.ft (48 Nm)

Bolts 15 - 21: 89 lb.in (10 Nm)

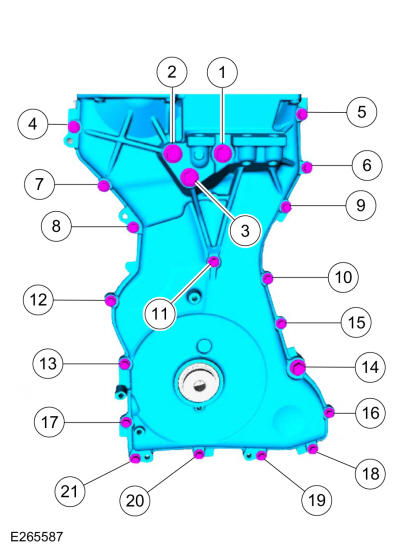

Fig 1: Engine Front Cover Tightening Sequence (PHEV)
Courtesy of FORD MOTOR COMPANY

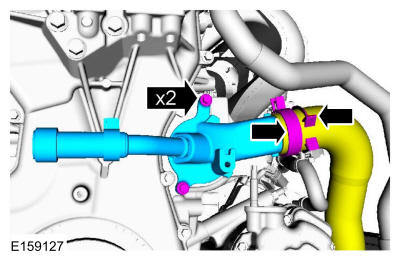

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

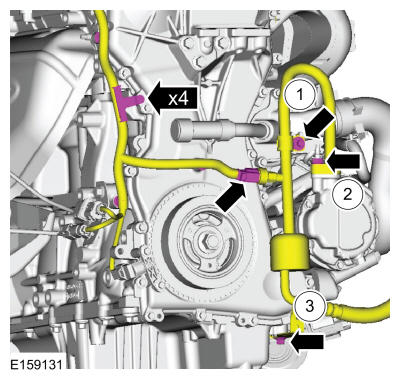

Torque
:1: 89 lb.in (10 Nm)

2: 133 lb.in (15 Nm)

3: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Engine Mount .
2. Refer to: Crankshaft Front Seal .
1. Refer to: Cooling System Draining, Filling And Bleeding .
2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
