Cylinder Head - Plug-In Hybrid Electric Vehicle (PHEV): Installation

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the metal surface prep.

NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.

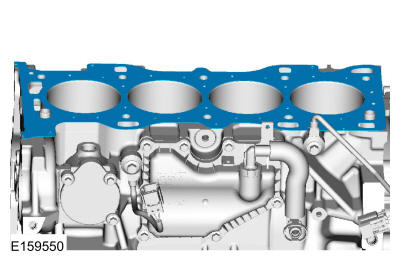

Clean all mating surfaces.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
- Refer to: Cylinder Head Distortion .
- Refer to: Cylinder Block Distortion .

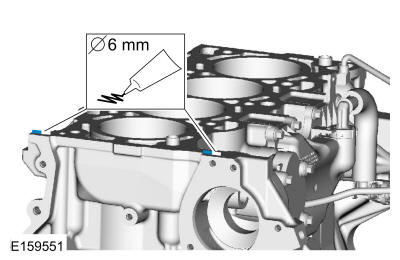

Apply the specified sealant to the specified component.
Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Torque

:Stage 1: 62 lb.in (7 Nm)

Stage 2: 133 lb.in (15 Nm)

Stage 3: 33 lb.ft (45 Nm)

Stage 4: 90 °

Stage 5: 90 °

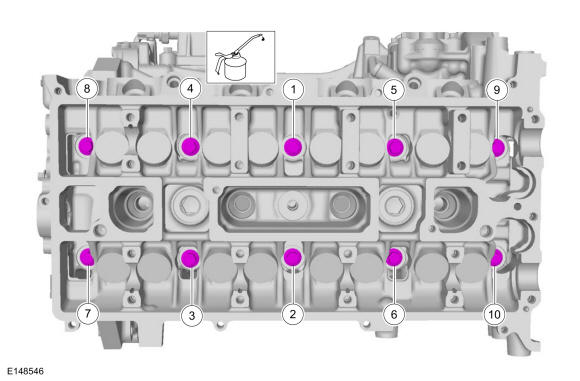

Fig 1: Cylinder Head Tightening Sequence (PHEV)
Courtesy of FORD MOTOR COMPANY

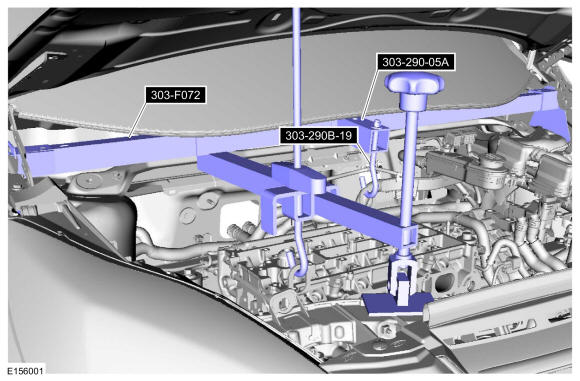

Install Special Service Tool: 303-F072 Support Bar, Engine., 303-290-05A Adapter for 303-290A.

Courtesy of FORD MOTOR COMPANY

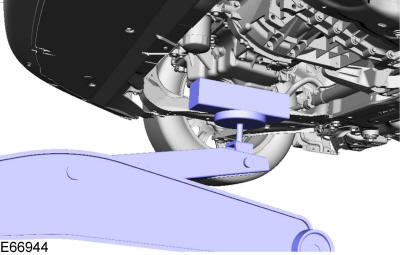

Use the General Equipment: Trolley Jack
Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
NOTE: Transmission removed from graphic for clarity.

Courtesy of FORD MOTOR COMPANY
Refer to: Valve Tappets .
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Torque
: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

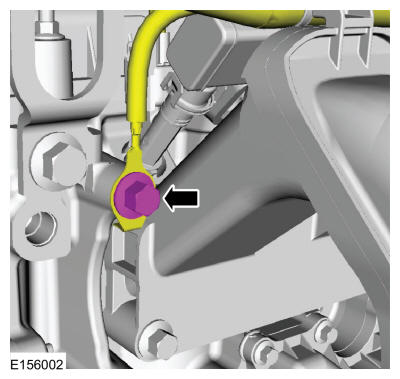

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

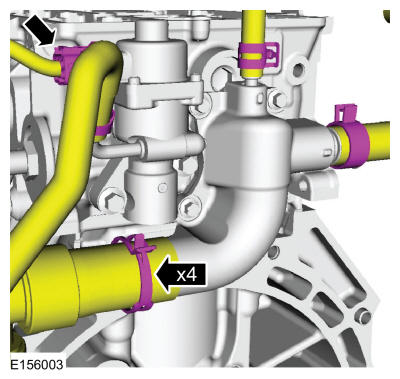

Courtesy of FORD MOTOR COMPANY
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Intake Manifold .
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Transmission Control Module (TCM) .

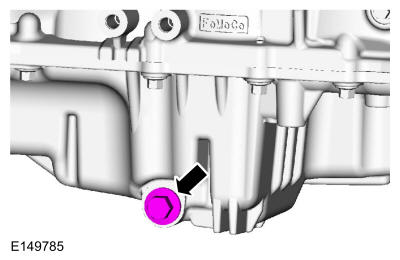

Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

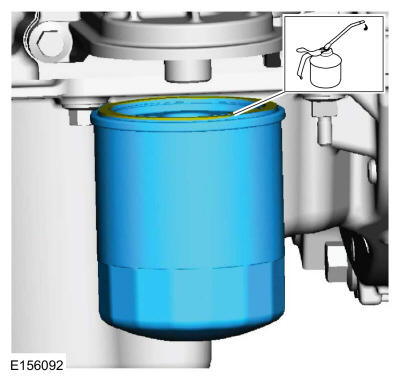

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
Torque

:Stage 1: 71 lb.in (8 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
1. Refer to: Battery Disconnect And Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
2. Refer to: High Voltage Battery Disconnect And Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
3. Refer to: Cooling System Draining, Filling and Bleeding .
4. Refer to: Cooling System Draining, Filling and Bleeding .
