Crankshaft Rear Seal: Installation

NOTE: If the crankshaft rear seal is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.118 in) bead of silicone to the oil pan surface and a 5 mm (0.196 in) bead at the T-joints.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
1. Install the crankshaft rear main oil seal installer. Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
2. Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.
3. Tilt the seal retainer up and onto the rear of the cylinder block.
Courtesy of FORD MOTOR COMPANY
Using the special tool, seat the crankshaft rear seal. Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.

Courtesy of FORD MOTOR COMPANY
Install the bolts and tighten in sequence shown. Remove Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
Torque: 89 lb.in (10 Nm)

Fig 1: Crankshaft Rear Seal Retainer Plate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Drain the engine oil and install the drain plug. Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

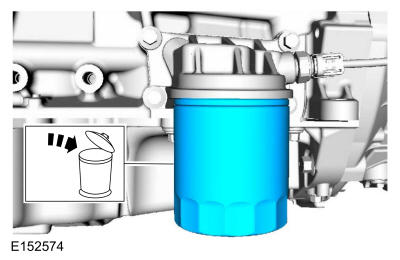

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

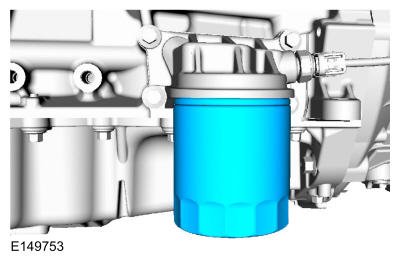

NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Torque

:Stage 1: 71 lb.in (8 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
Install the flywheel..
Refer to: Flywheel
