Crankshaft Pulley: Removal

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Refer to: Jacking And Lifting - Overview .
Courtesy of FORD MOTOR COMPANY

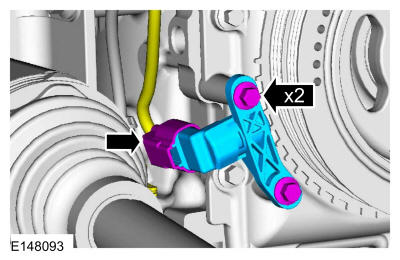

Remove the following items:
- RH only. Refer to: Fender Splash Shield
- Refer to: Valve Cover
Courtesy of FORD MOTOR COMPANY

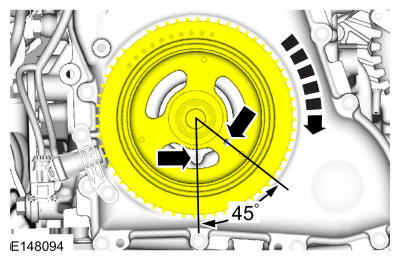

Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

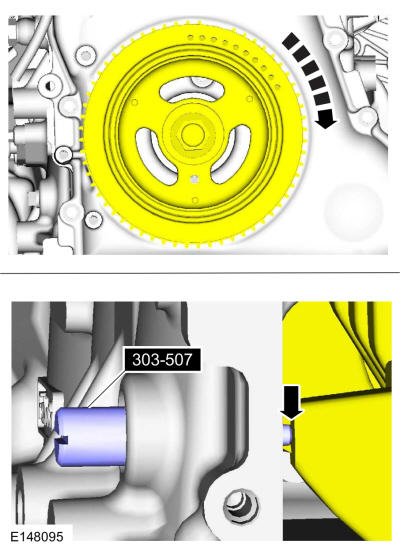

Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.

NOTE: The engine front cover is removed from graphic for clarity.

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Alignment Timing Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Timing Tool cannot be installed, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.

Install Special Service Tool: 303-465 Tool, Camshaft Align Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool, and the bolt should be removed using an air impact wrench (1/2-in drive minimum).

NOTE: If equipped, the crankshaft sprocket diamond washer may come off with the crankshaft pulley.

NOTE: Use an air impact wrench to remove the crankshaft pulley bolt.

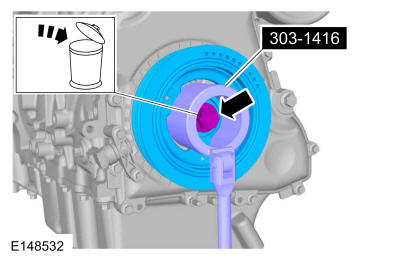

Use Special Service Tool: 303-1416 Tool, Crank Damper Holding.

Courtesy of FORD MOTOR COMPANY
NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

If equipped, remove the diamond washer.

Courtesy of FORD MOTOR COMPANY
