Crankshaft Front Seal: Installation

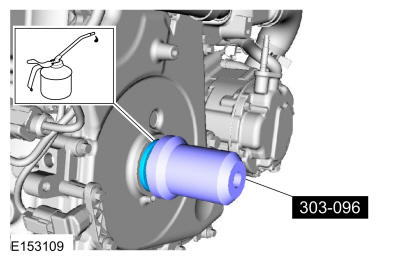

  1. NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

    Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

    GFD223225Courtesy of FORD MOTOR COMPANY
  2. Refer to: Crankshaft Pulley .
