Removal And Installation: Camshafts: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health And Safety Precautions .
Refer to: Jacking And Lifting - Overview .
Refer to: Valve Clearance Check .
Refer to: Variable Valve Timing (VVT) Unit .
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-465 Tool, Camshaft Align Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

NOTE: Mark the location and orientation of each camshaft bearing cap.

NOTE: Mark the location of the camshafts prior to removal.

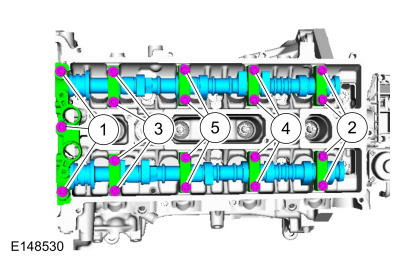

Loosen the camshaft bearing cap bolts, in sequence, one turn at a time until all tension is released from the camshaft bearing caps.

Fig 1: Camshaft Loosening Sequence
Courtesy of FORD MOTOR COMPANY
