Removal And Installation: Thermostat: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions .

  2. Refer to: Cooling System Draining, Filling and Bleeding .

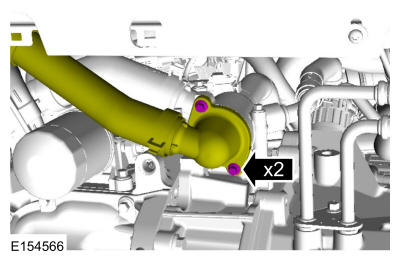

  3. NOTE: Be prepared to contain escaping fluid.

    Torque: 89 lb.in (10 Nm)

    GFD223554Courtesy of FORD MOTOR COMPANY

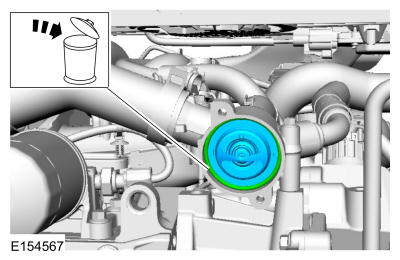

  4. Discard the specified component. Follow local disposal regulations.
    GFD223555Courtesy of FORD MOTOR COMPANY
