Removal And Installation: Radiator: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions .

  2. Refer to: Cooling System Draining, Filling and Bleeding .
  3. Refer to: Cooling Fan Motor and Shroud .
  4. Refer to: Active Grille Shutter .

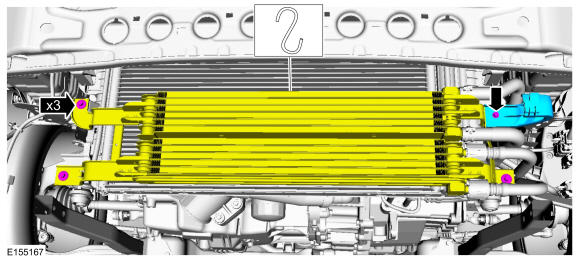

  5. Relocate and support the component.

    Torque: 53 lb.in (6 Nm)

    GFD223550Courtesy of FORD MOTOR COMPANY

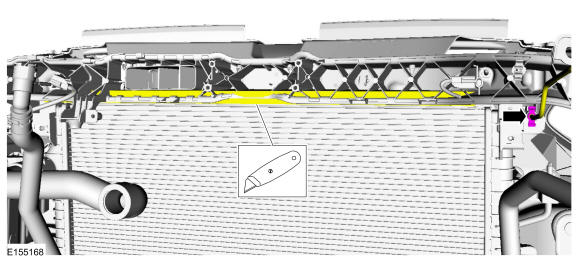

  6. Use the General Equipment: Knife
    GFD223551Courtesy of FORD MOTOR COMPANY

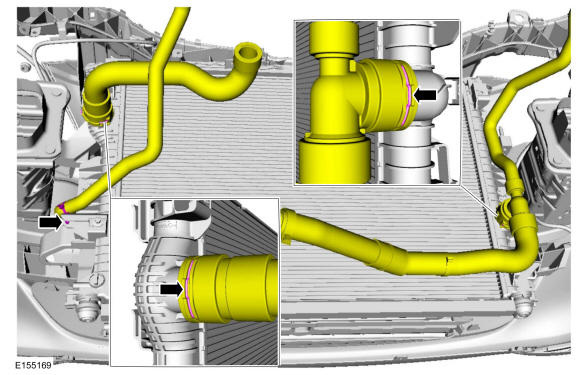

  7. GFD223552Courtesy of FORD MOTOR COMPANY

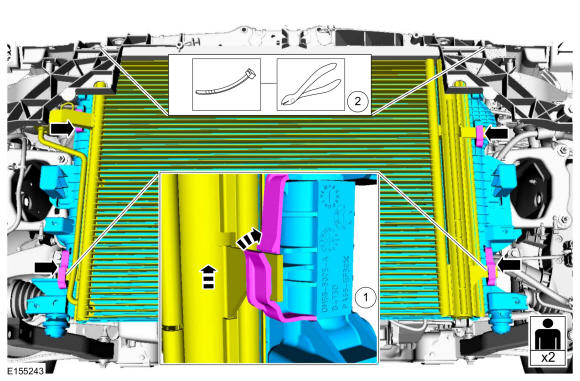

  8. NOTE: Support the A/C condensor so no strain is placed on the refrigerant lines.

    1. Release the tabs and seperate the A/C condensor from the radiator.
    2. Cut the cable ties and remove the radiator.

    GFD223553Courtesy of FORD MOTOR COMPANY
