Heater Hoses: Removal

All vehicles

1. Refer to: Air Cleaner .
2. Refer to: Air Cleaner Outlet Pipe .
3. Refer to: Cowl Panel .
4. Drain the engine cooling system. Refer to: Cooling System Draining, Filling and Bleeding .
5. Drain the electric powertrain cooling system. Refer to: Cooling System Draining, Filling and Bleeding .
6. Refer to: Transmission Control Module (TCM) .

8. Courtesy of FORD MOTOR COMPANY

FHEV vehicles

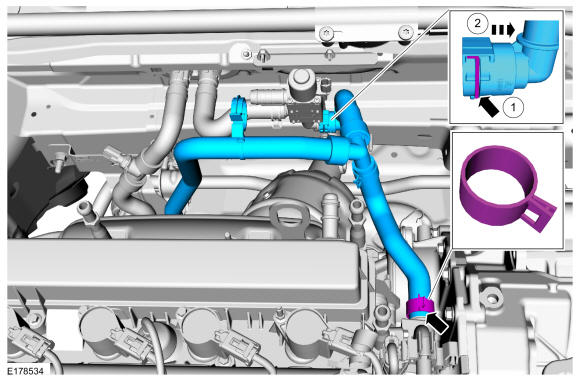

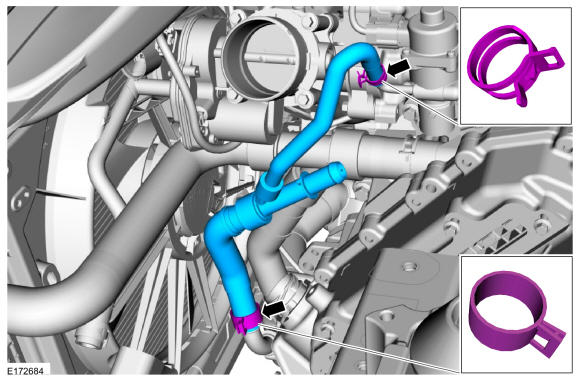

9. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

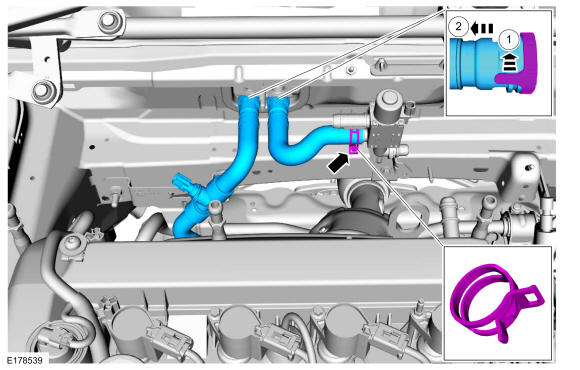

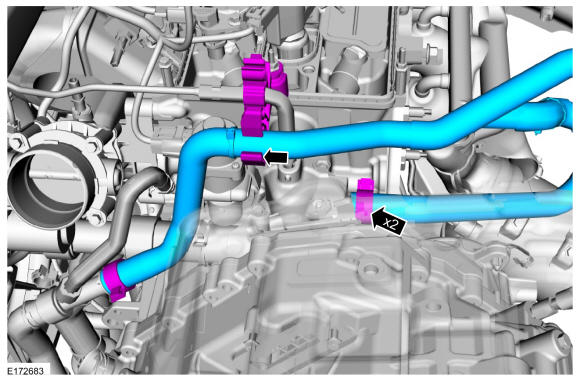

10. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

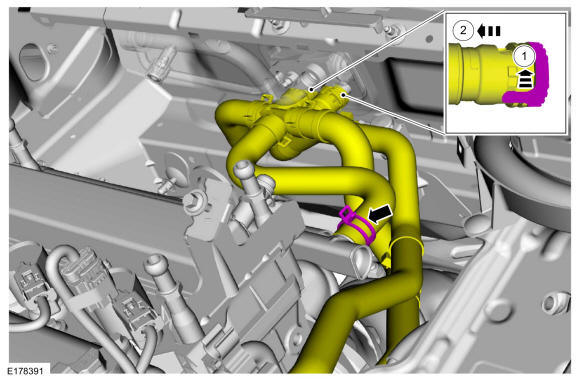

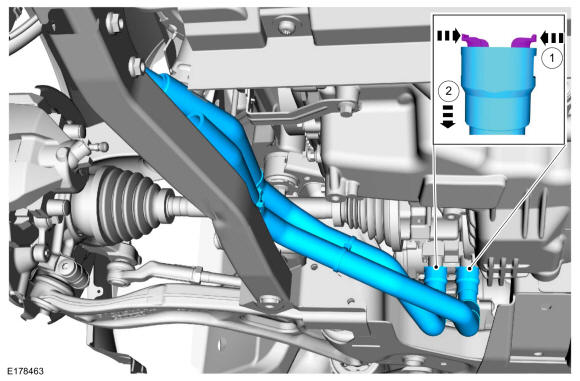

11. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

    PHEV vehicles

12. Remove the RH fender splash shield.

    Refer to: Fender Splash Shield

13. Courtesy of FORD MOTOR COMPANY

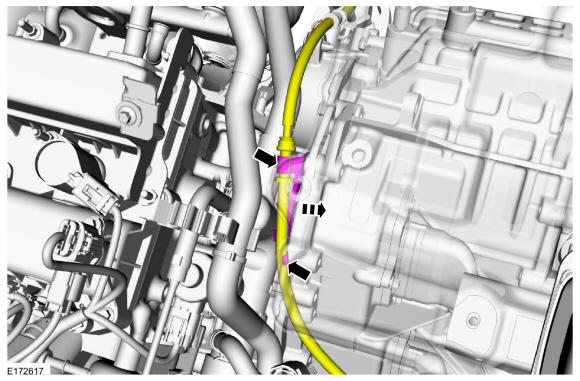

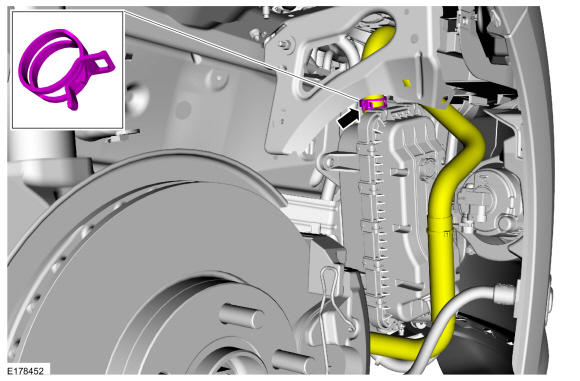

14. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

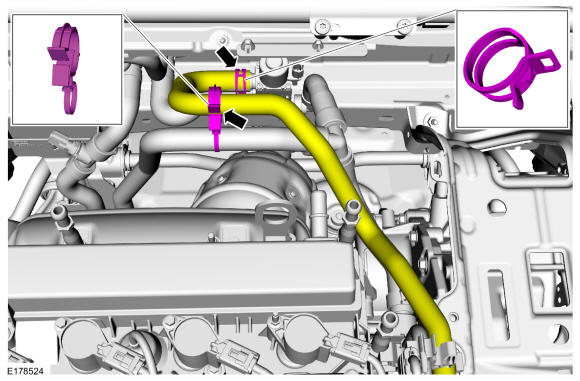

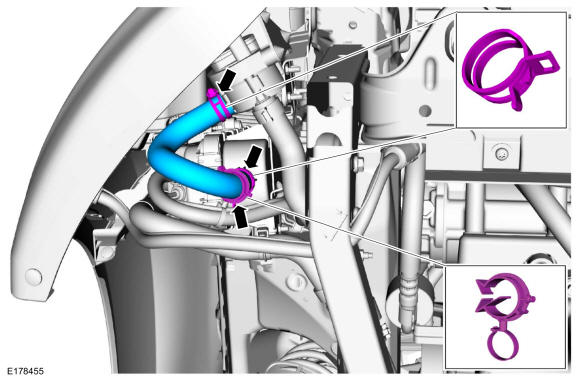

15. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

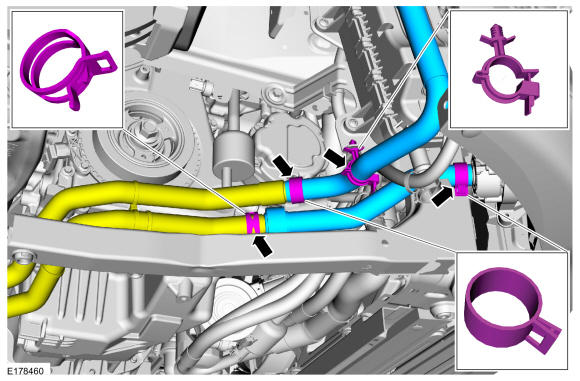

16. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

17. Courtesy of FORD MOTOR COMPANY

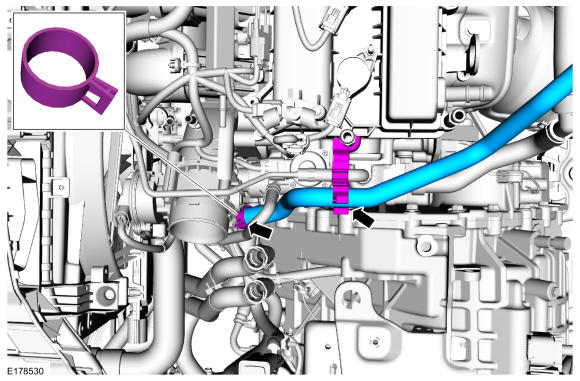

18. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

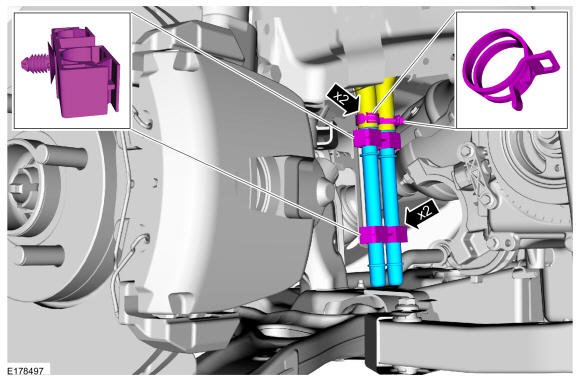

19. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

20. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

21. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

22. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

23. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY
