Degas Bottle: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. GFD223523Courtesy of FORD MOTOR COMPANY

    2. Plug-in Hybrid Electric Vehicle (PHEV)

  2. GFD223526Courtesy of FORD MOTOR COMPANY

    3. All vehicles

  3. Use the General Equipment: Hose Clamp(s)

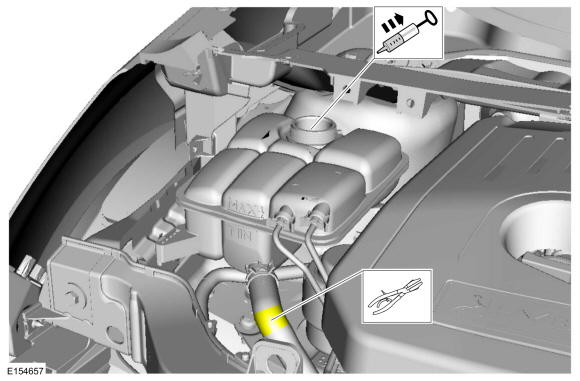

    GFD223547Courtesy of FORD MOTOR COMPANY
  4. NOTE: Be prepared to capture escaping fluid.

    Use the General Equipment: Hose Clamp Remover/Installer

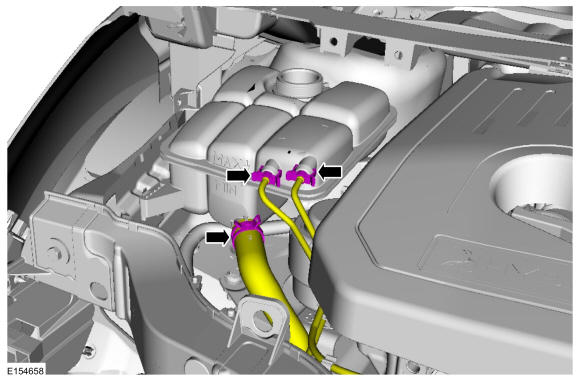

    GFD223548Courtesy of FORD MOTOR COMPANY

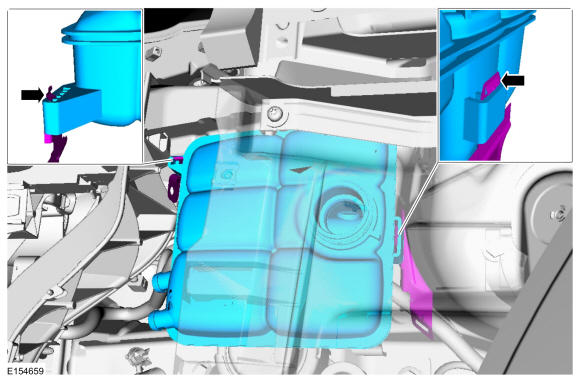

  5. GFD223549Courtesy of FORD MOTOR COMPANY
